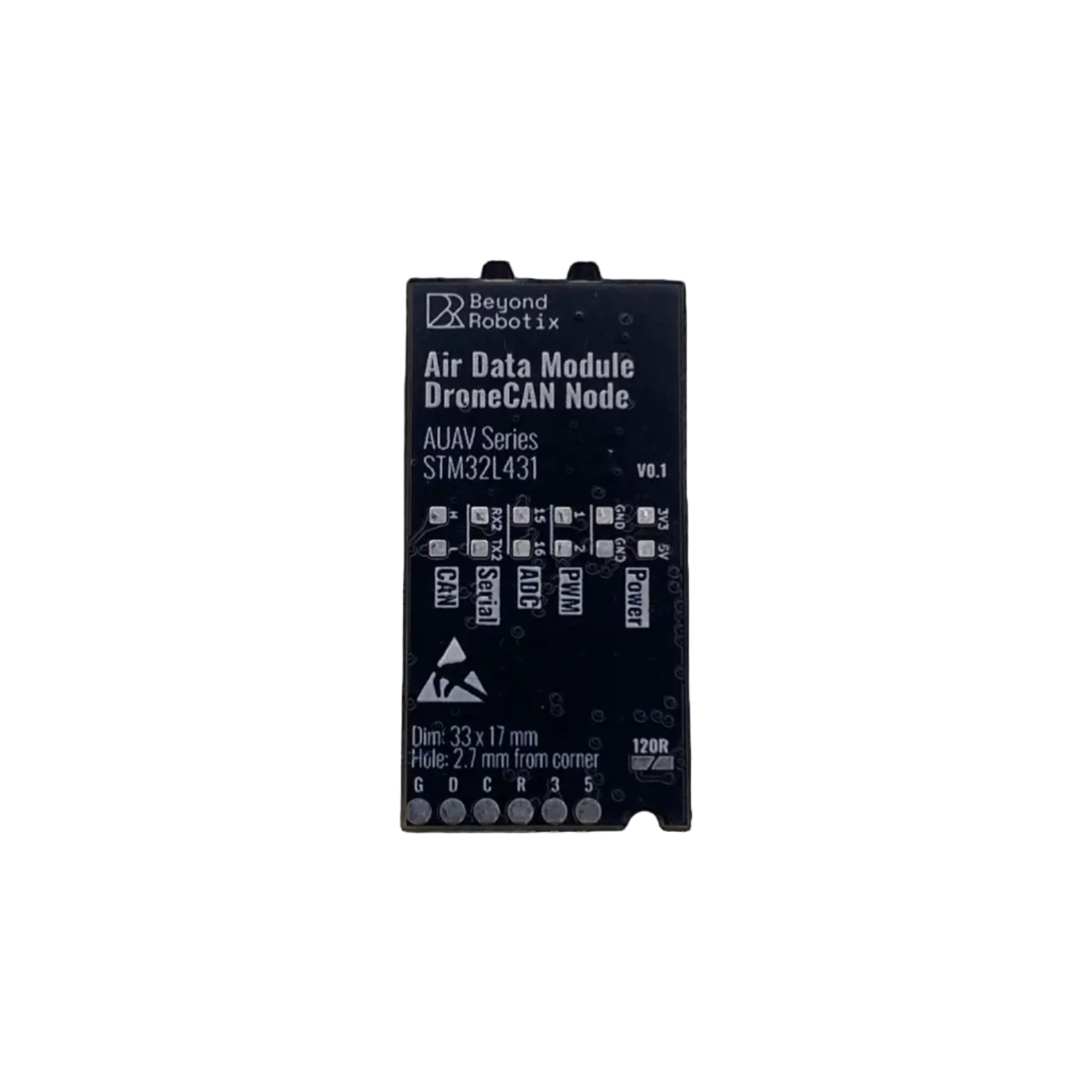

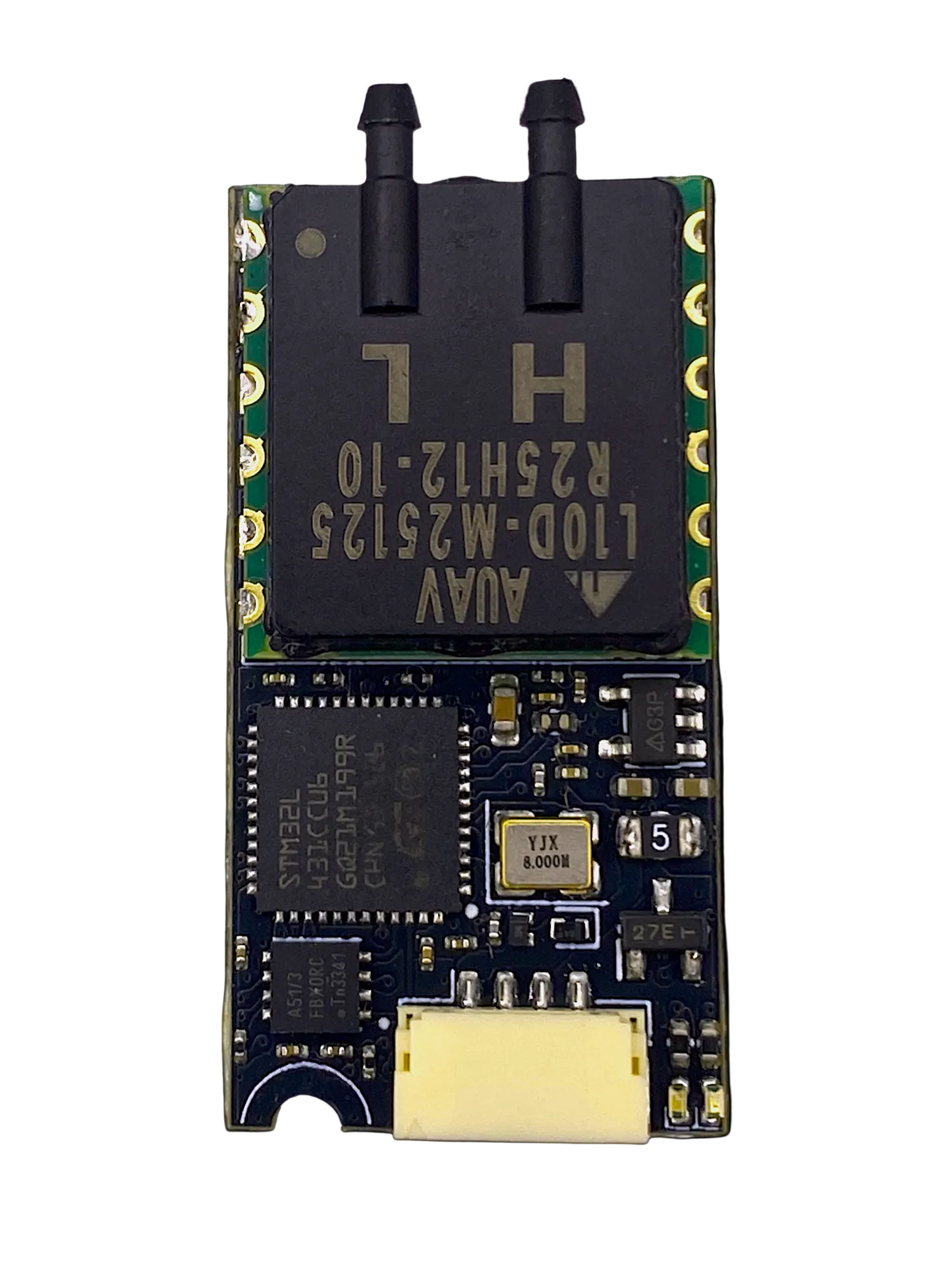

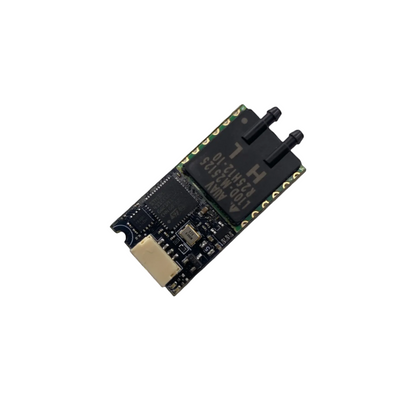

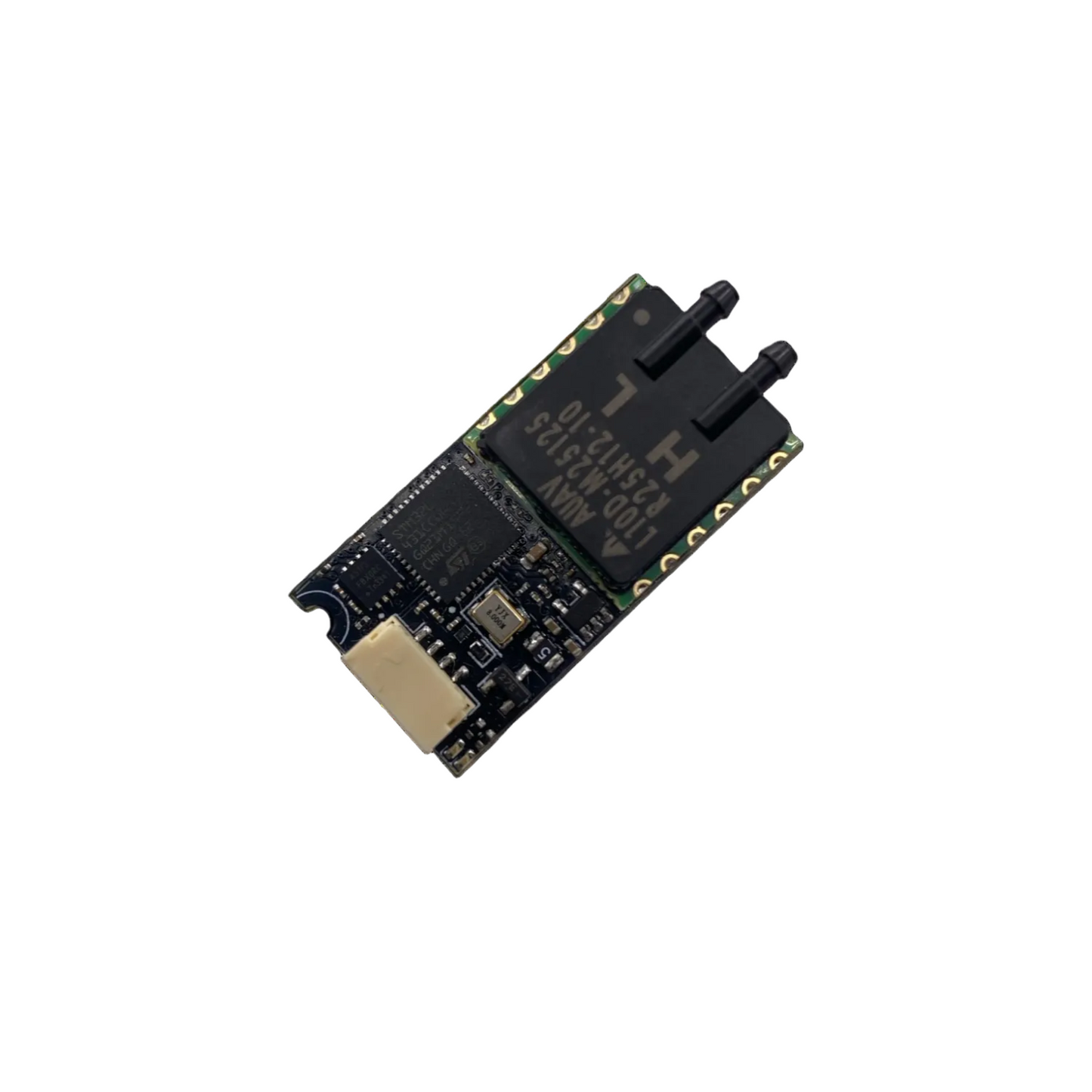

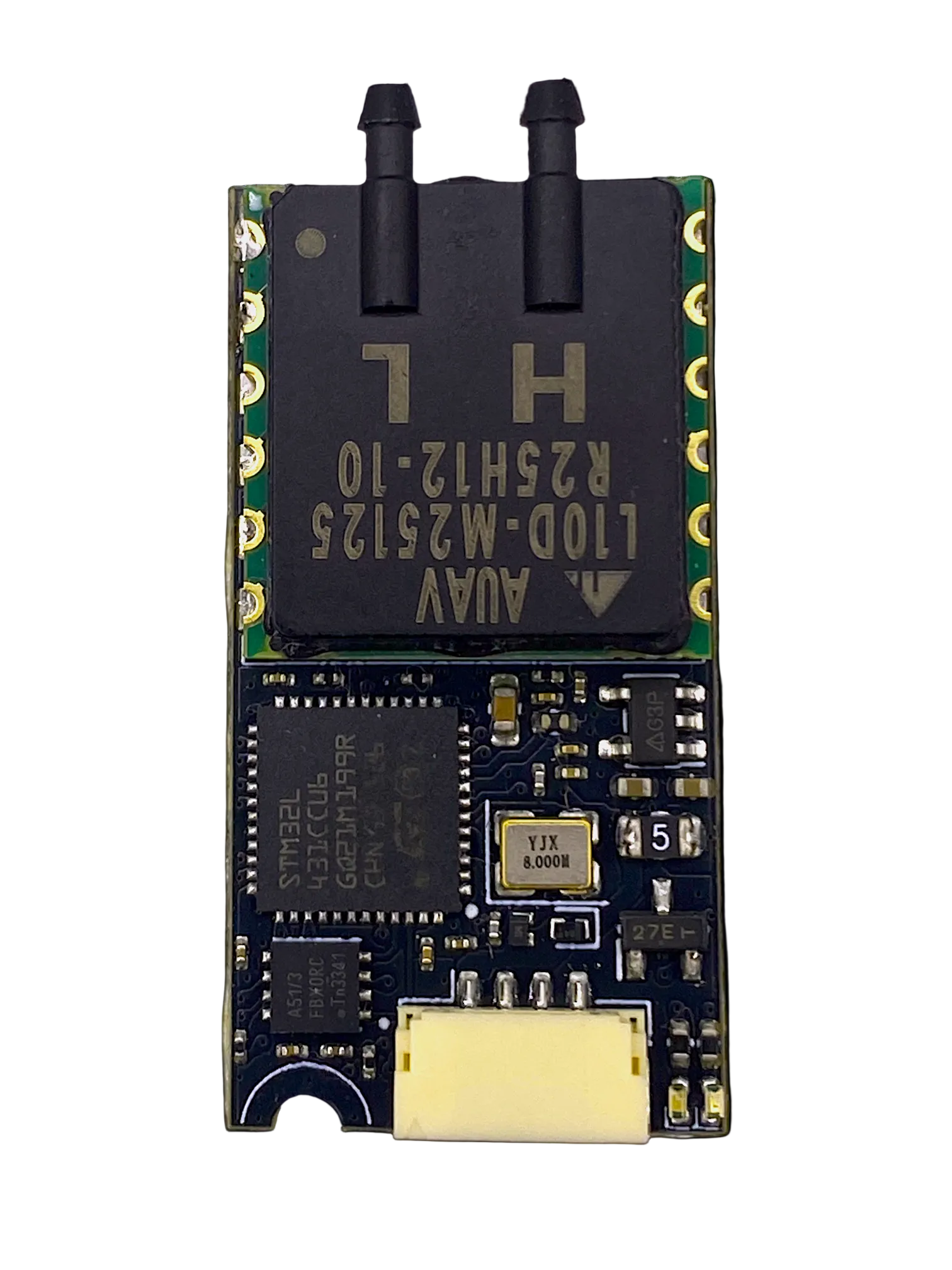

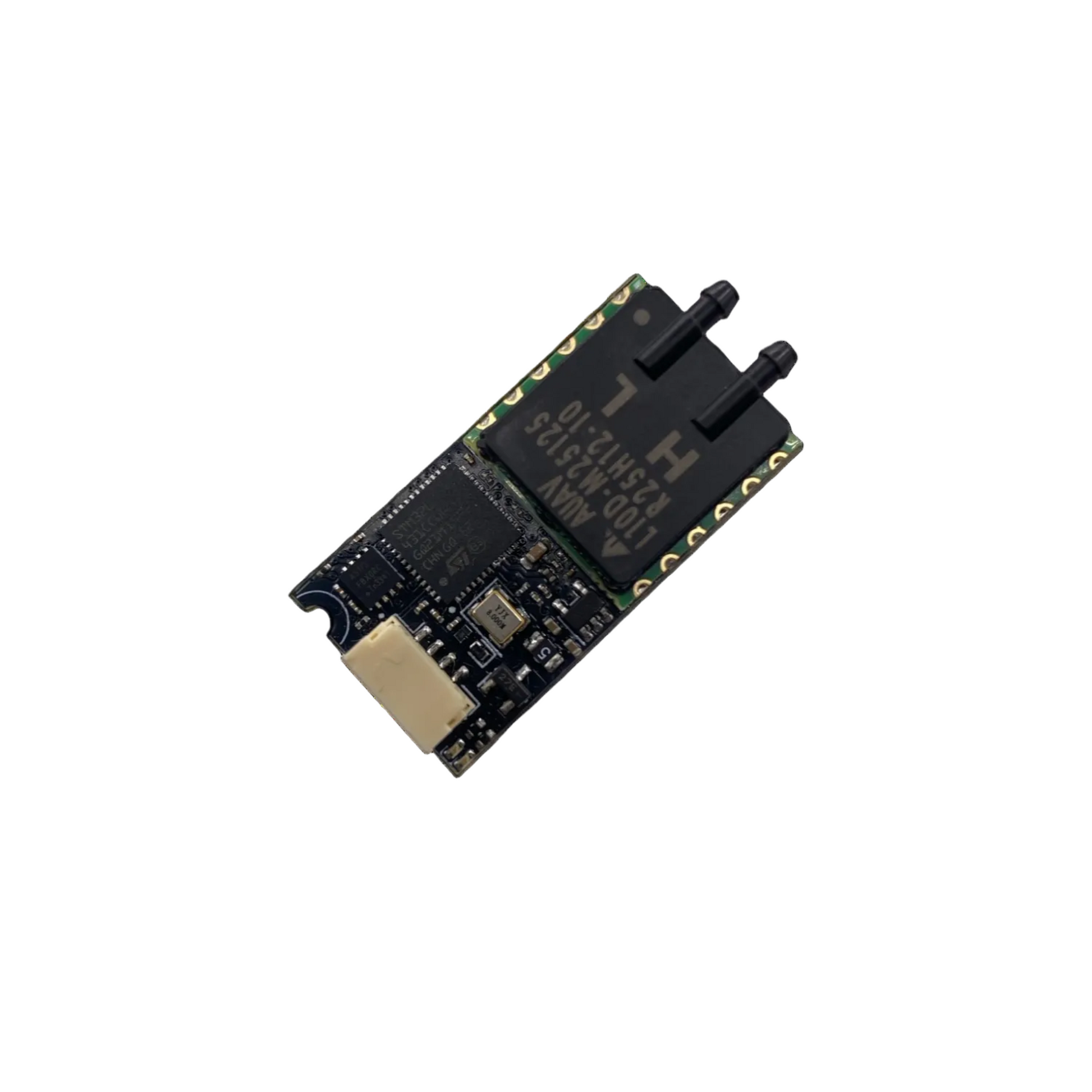

Air Data Module Mini
Air Data Module Mini
Precision Airspeed Sensor and Barometer
SKU:ADM-M-WW-L05D
Couldn't load pickup availability
Introducing the Air Data Module Mini, which delivers all the performance and reliability of the original Air Data Module in a smaller, lighter form factor. It’s ideal for UAVs where weight and space are at a premium, without compromising on accuracy or compatibility. Available with the same operating speed options and the choice of UK or Worldwide manufacturing, the Mini makes it easy to integrate high-precision airspeed sensing into compact or weight-sensitive platforms.
Product Details
Product Details
- Configurable over DroneCAN
- Compatible with Ardupilot and PX4
- Connectors: Pixhawk and Cube compatible JST-GH connectors
- Plug-and-Play
- Sensors: Available with the best in class All Sensors AUAV L05D, L10D, L30D, L60D or L100D
What's Included
What's Included
- Air Data Module Mini
- Pitot tube
- Clear tubing
- JST-GH CAN cable
- Quick start guide
Specifications
Specifications
- Mass: 3.8 g (Sensor module only)
- Dimensions: 33x17mm
- Power: 21mA (4.5 - 5.5 V)
- Operating Temperature: -40 °C to +85 °C
- Absolute Pressure Operating Range: 25kPa - 125kPa
- Connector: JST-GH 4 Pin (compatible with Pixhawk and Cube CAN port)
L05D
- Sensor: All Sensors AUAV L05D
- Differential Pressure Operating Range: ±1.2kPa (5inH20)
L10D
- Sensor: All Sensors AUAV L10D
- Differential Pressure Operating Range: ±2.5kPa (10inH20)
L30D
- Sensor: All Sensors AUAV L30D
- Differential Pressure Operating Range: ±7.5kPa (30inH20)
L60D
- Sensor: All Sensors AUAV L60D
- Differential Pressure Operating Range: ±14.9kPa (60inH20)
L100D
- Sensor: All Sensors AUAV L100D
- Differential Pressure Operating Range: ±24.9kPa (100inH20)
See the resources section for our GitBooks documentation!
Share
Built-in Barometer
Unlike many airspeed sensors on the market, this sensor takes a differential and an absolute pressure measurement. Allowing airspeed and altitude readings through one sensor.
Using the static port of a pitot tube allows reliable altitude measurements, avoiding issues with internal autopilot barometers which can be affected by internal fuselage pressure changes.
Good static pressure measurments will enable improved GPS denied operation over autopilot internal barometer hardware.
All Speeds Covered
Choose from the low, medium and high speed versions of the Air Data Module to get the right sensor for your use case, from slow flying all the way up to 193m/s.
FAQs
What is the Beyond Robotix Air Data Module?
The Beyond Robotix Air Data Module is a precision airspeed sensor and barometer designed for demanding drone applications. It provides accurate airspeed and barometric altitude data, crucial for stable flight, autonomous navigation, and performance analysis for UAVs (Unmanned Aerial Vehicles).
Who is the Air Data Module For?
This module is ideal for researchers, commercial drone operators, and advanced hobbyists who require reliable and high-precision air data for their flight controller.
What are the key benefits of using the Air Data Module?
Key benefits include high-precision barometer and airspeed outputs with a minimal error band, and CAN port for simplified wiring and easy daisy-chaining within your DroneCAN network.
What makes the airspeed and altitude measurements reliable?
The Air Data Module utilizes the market-leading All Sensors AUAV series, known for providing airspeed and altitude measurements with best-in-class total error bands, ensuring trustworthy data. You can find more information about the All Sensors AUAV Series here.
How does the Air Data Module integrate with my drone
The module offers flexible integration through its CAN port and its Pixhawk and Cube compatible JST-GH connector, making it easy to daisy-chain with other nodes in your DroneCAN network.
What operating speeds does the Air Data Module support?
The Beyond Robotix Air Data Module is available in 5 variants to cover all speeds:
- L05D: up to 45m/s (88 kts)
- L10D: up to 63 m/s (122 kts)
- L30D: up to 111 m/s (216 kts)
- L60D: up to 149 m/s (290 kts)
- L100D: up to 193 m/s (375 kts)
Choose the version that best suits your aircraft's operational envelope, from slow flying to high-speed UAVs.
Is the Air Data Module compatible with Pixhawk and Cube flight controllers?
Yes, the module features Pixhawk and a Cube compatible JST-GH connector, ensuring straightforward integration with popular flight controller platforms.
How do I set up the Air Data Module with Ardupilot or PX4?
A quick start guide and full information on using the Air Data Module is available in our Air Data Module Documentation.
Where can I use the Beyond Robotix Air Data Module?
It's perfect for a wide range of UAV applications, including aerial surveying, agricultural drones, delivery drones, research aircraft, and any drone requiring precise airspeed and altitude data for optimal performance and autonomous navigation.
