Kahuna

Kahuna

Mavlink Wi-Fi Telemetry Module

£25.00 GBP
£25.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

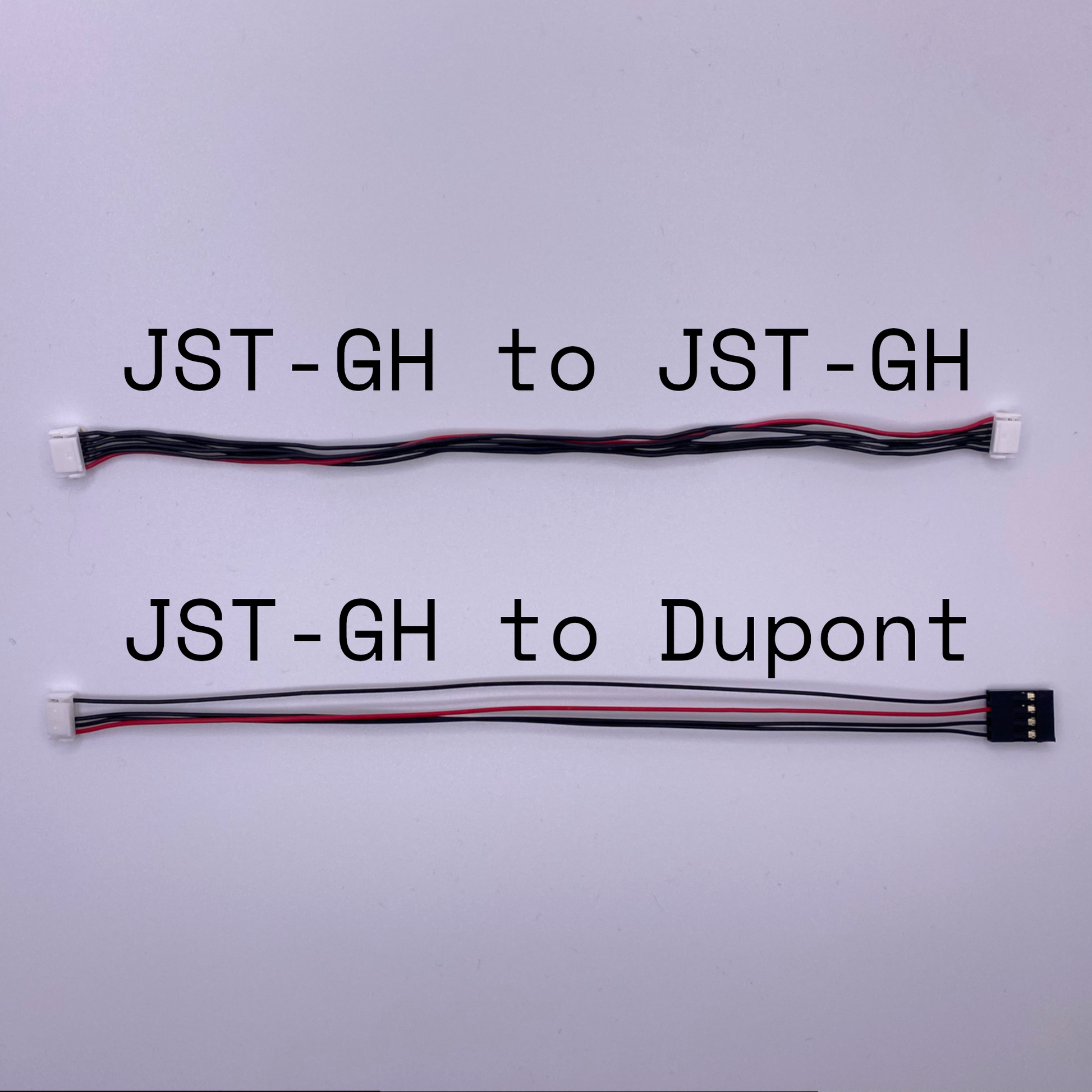

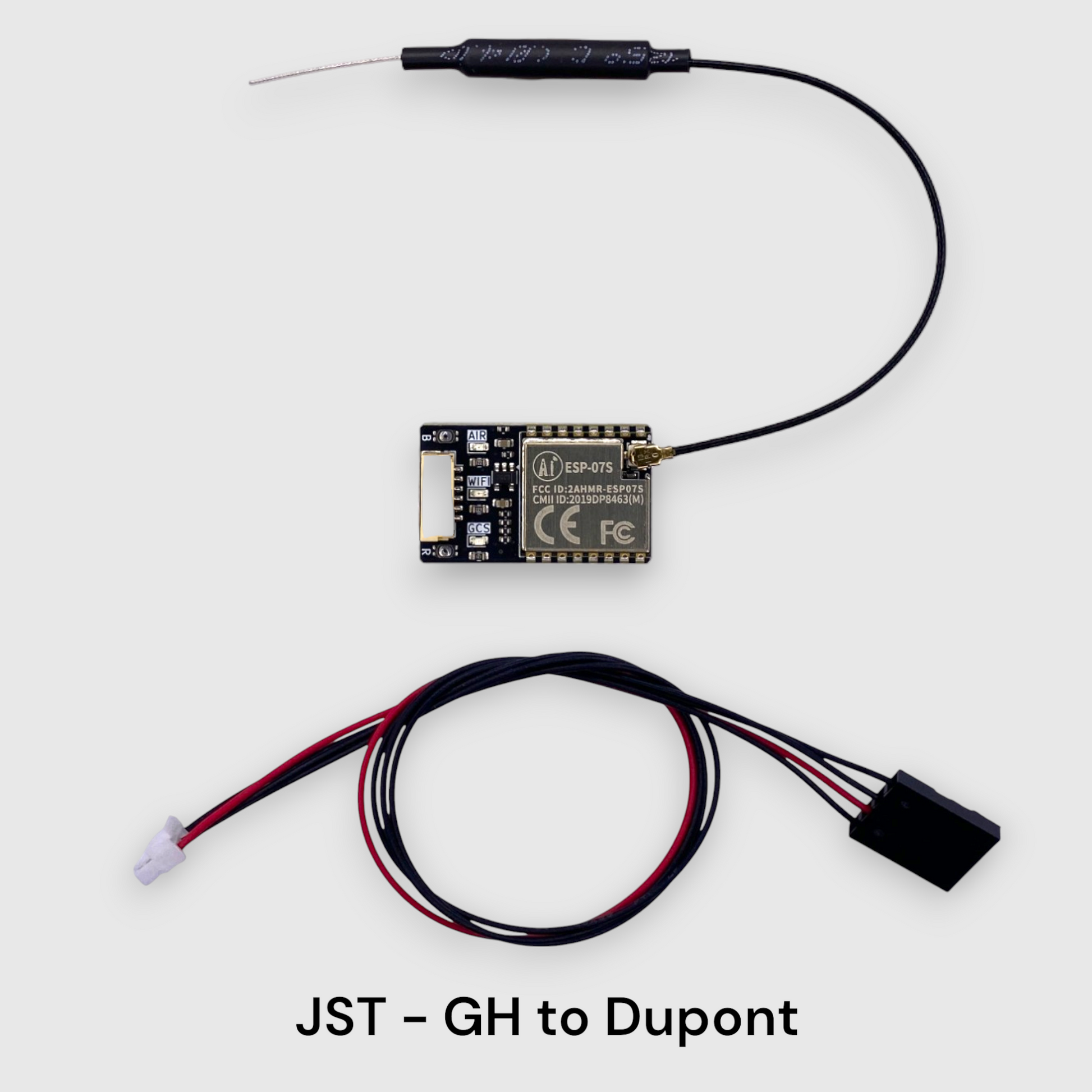

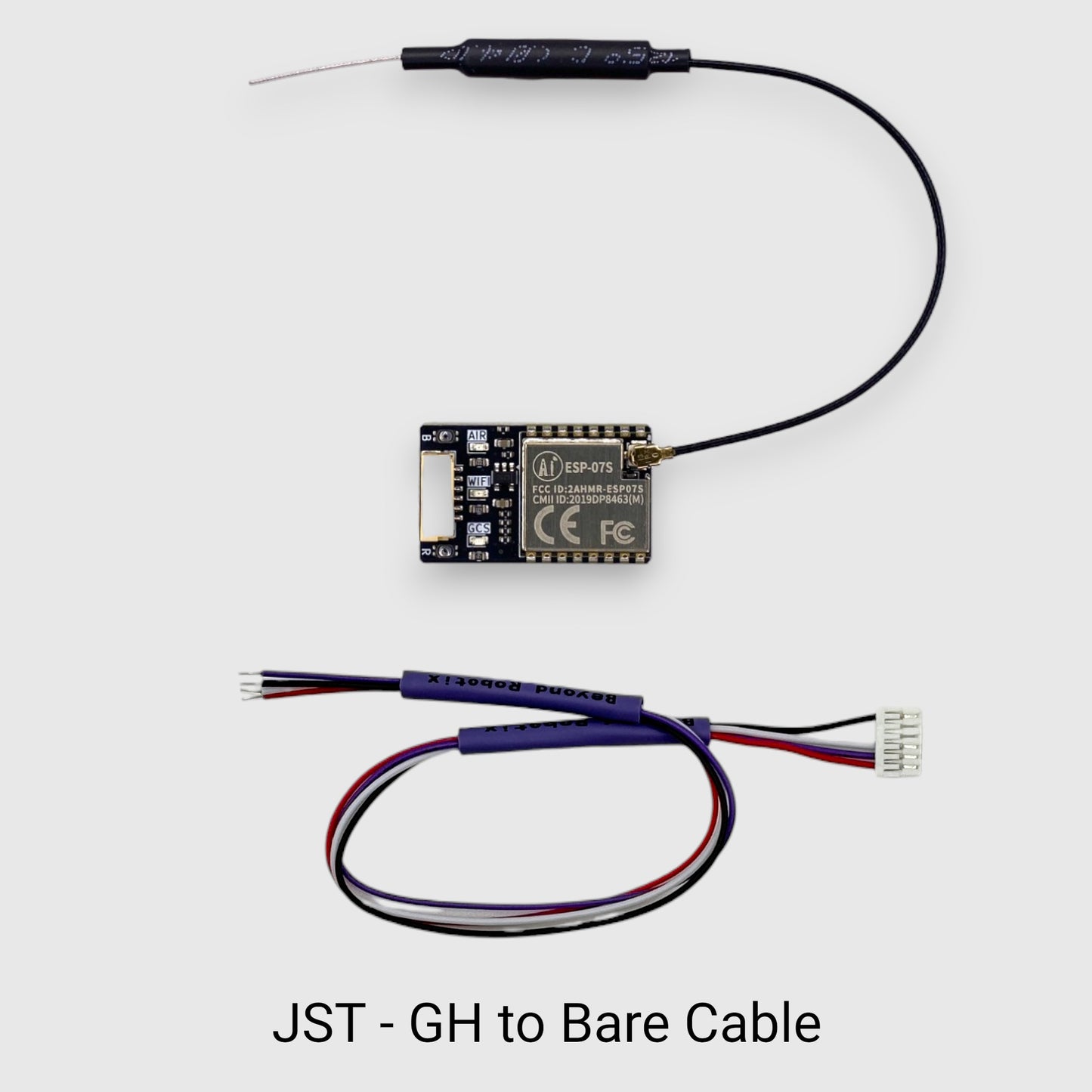

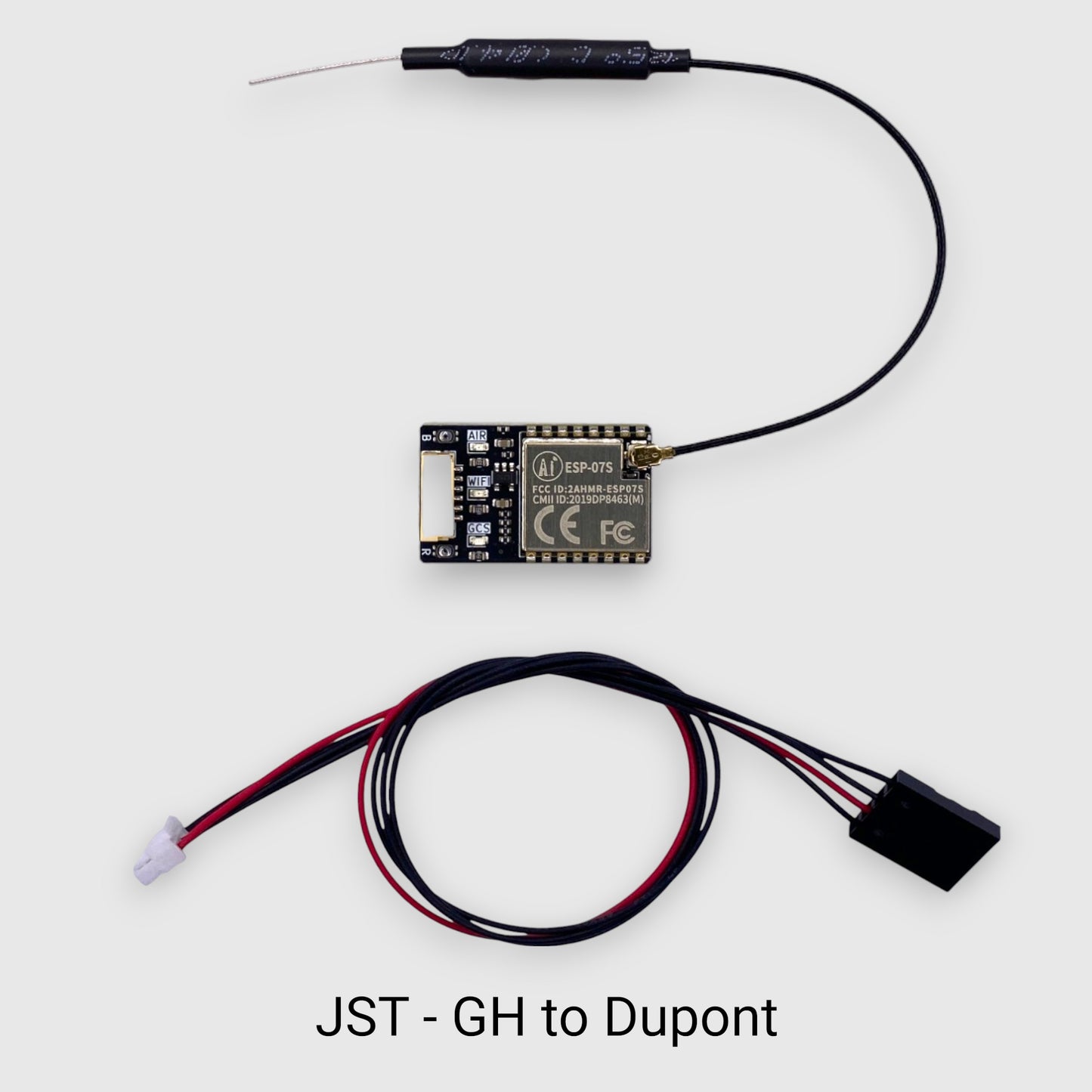

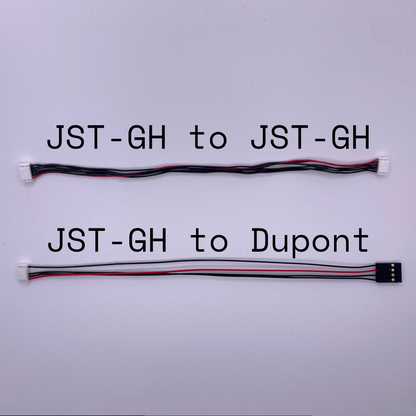

Cable

The Ultimate Solution for Drone Communication

Meet Kahuna — your go-to Mavlink Wi-Fi telemetry module designed to simplify and enhance the process of building and flying your own drones. Whether you're a hobbyist, part of a startup, or an educational institute, Kahuna offers unparalleled performance and versatility.

Why You'll Love It

The Kahuna is a Wi-Fi telemetry unit for the Pixhawk ecosystem. Connect effortlessly from any laptop or tablet using Mission Planner or QGroundControl. With multi-drone communication, long-range performance up to 2.5km, and a mobile-optimized UI, the Kahuna simplifies and enhances your drone operations.

Free worldwide shipping when you buy 2 or more Kahunas. For high-volume orders over 100 units, please contact us for lead times.

Product Details

  • Weight: Light and compact, designed not to weigh down your drone
  • Compatibility: Works seamlessly with Ardupilot and PX4
  • Materials: Durable components built to withstand rigorous use

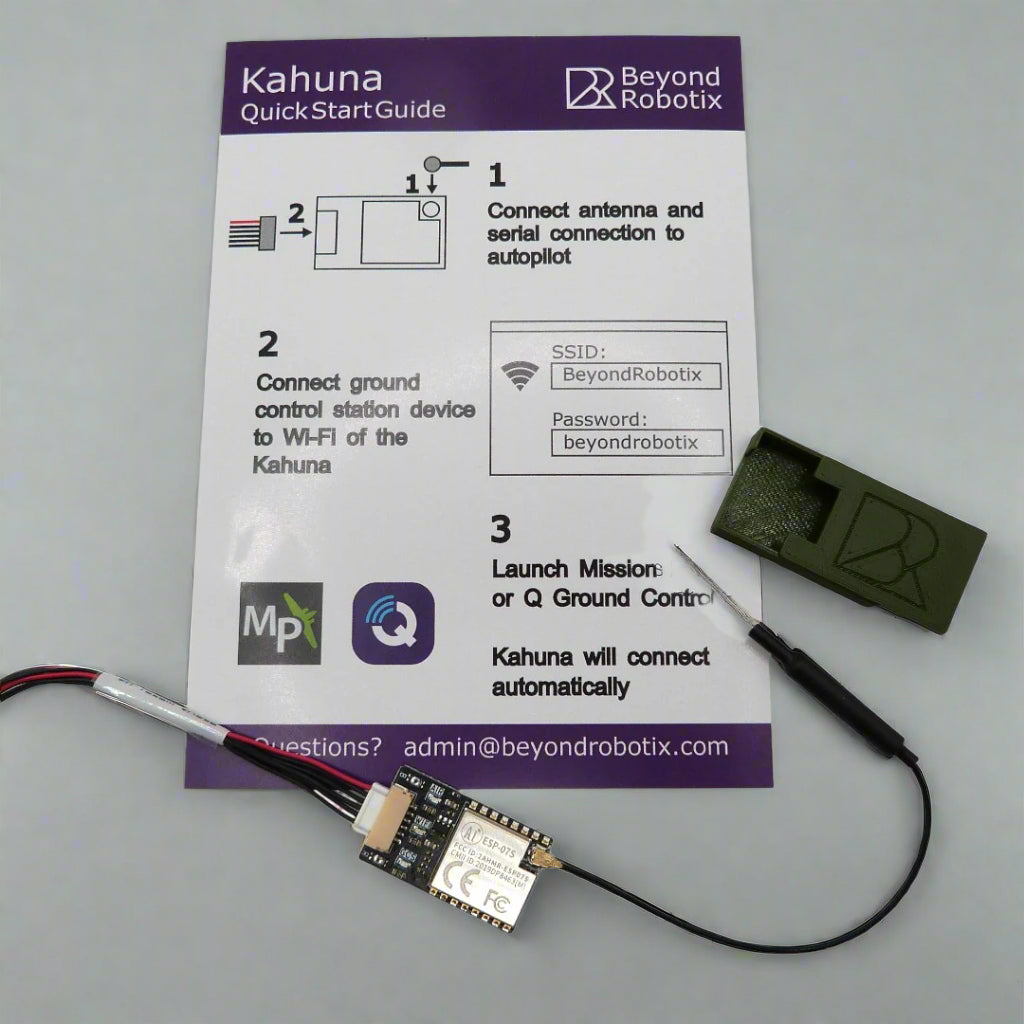

What's Included

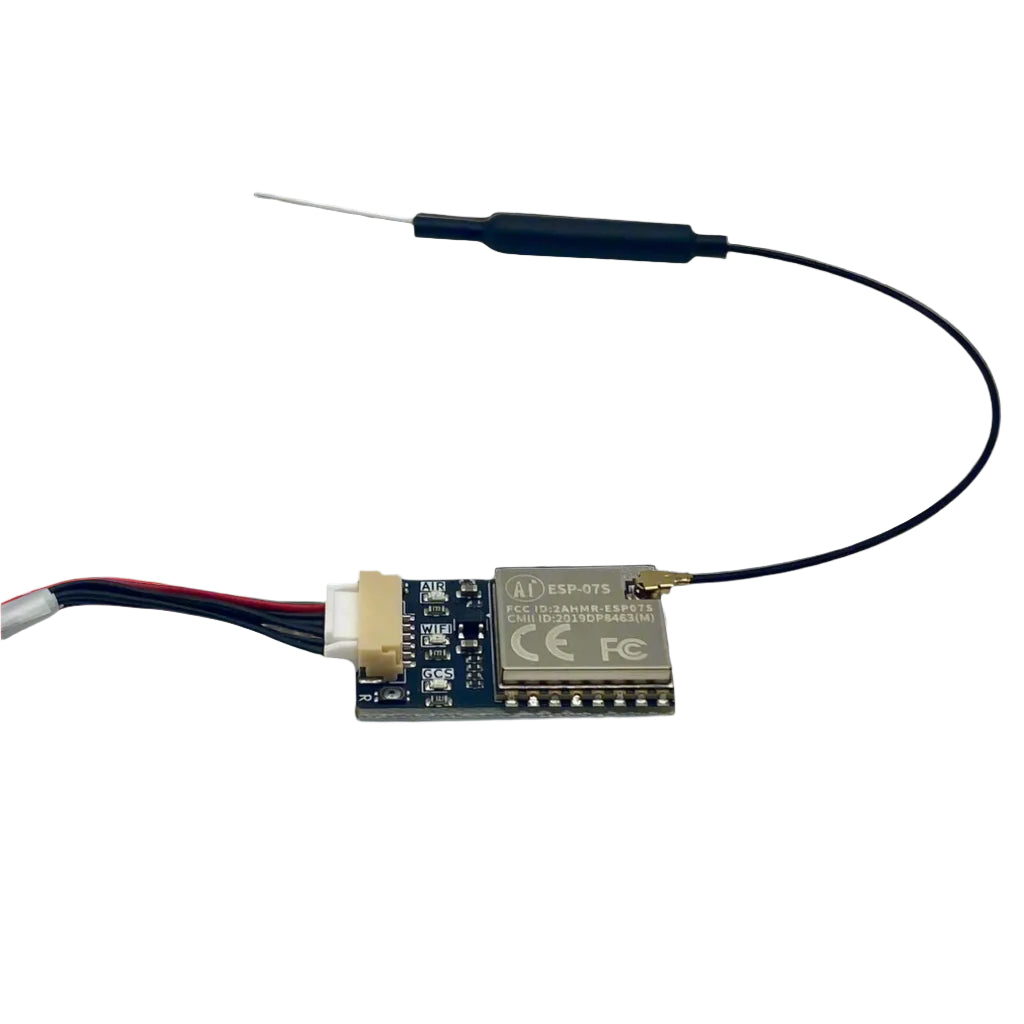

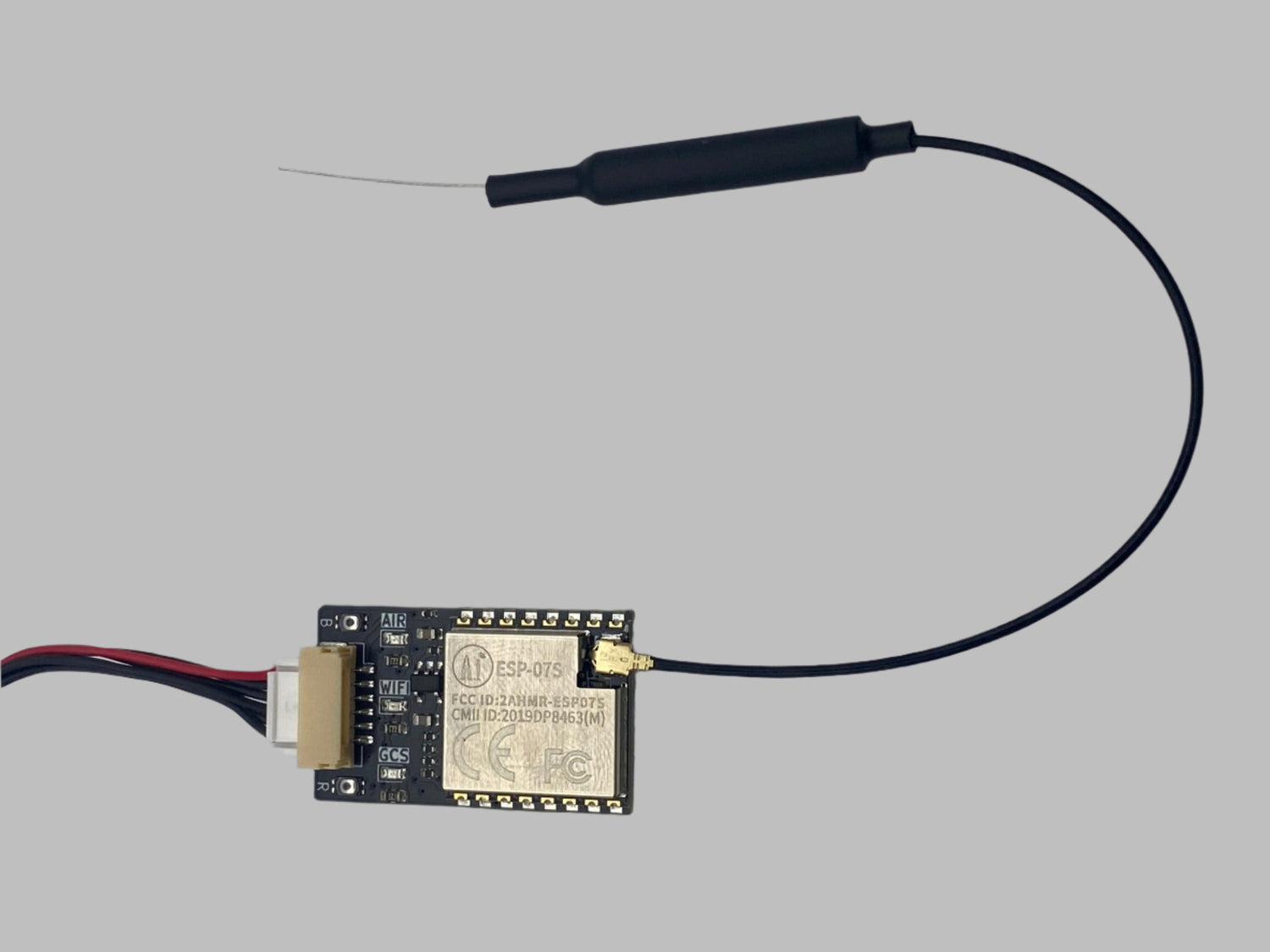

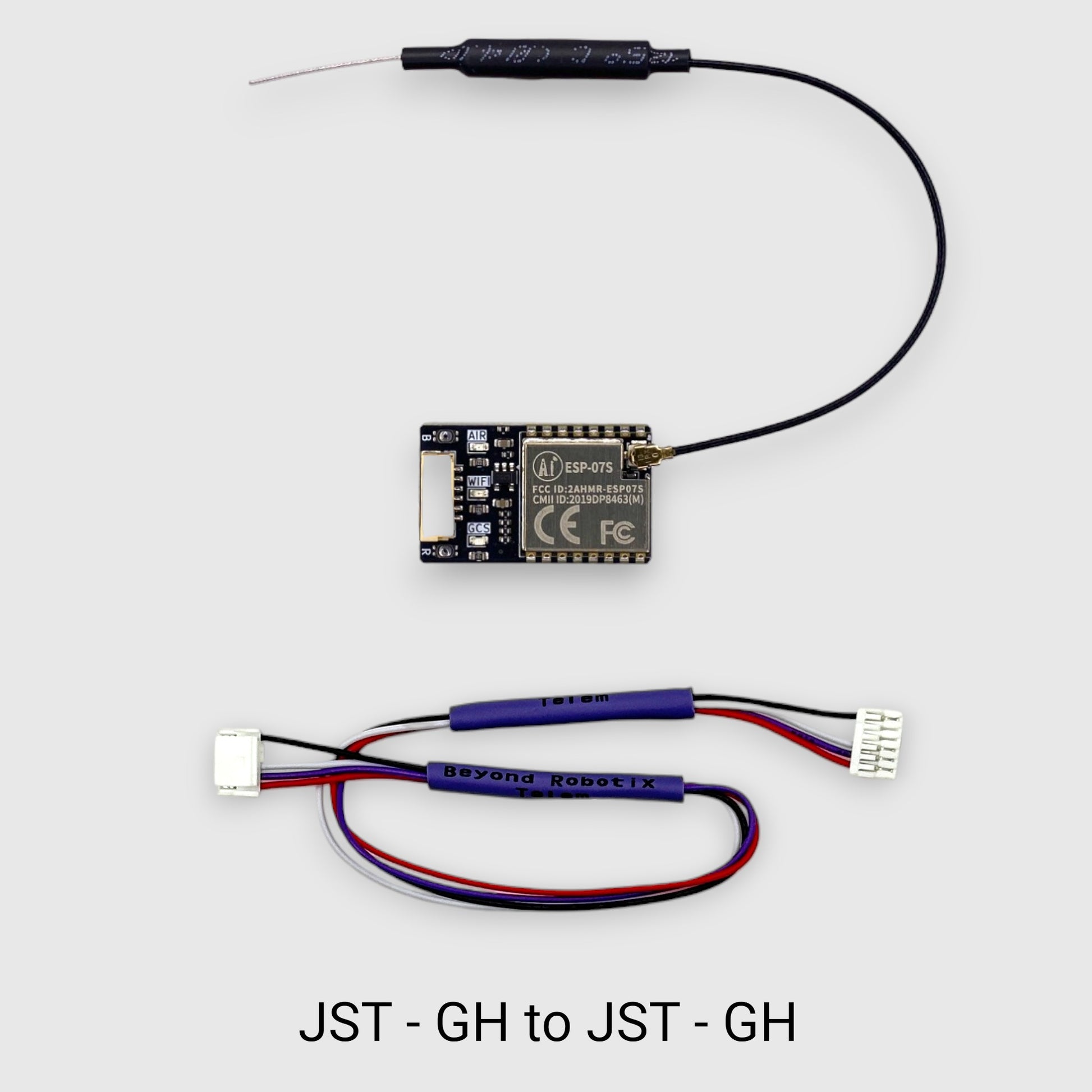

  • Kahuna MAVLink Wi-Fi Telemetry Module

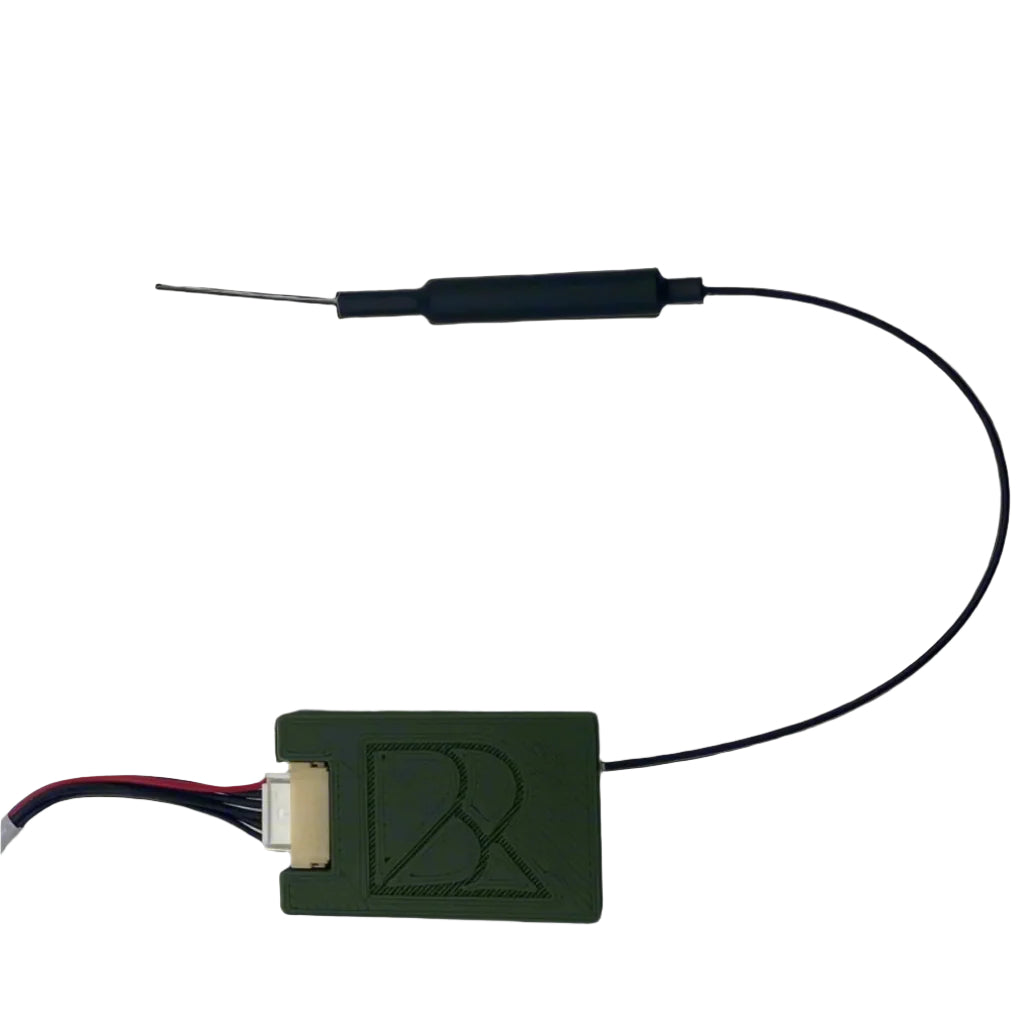

  • External 3dB dipole antenna

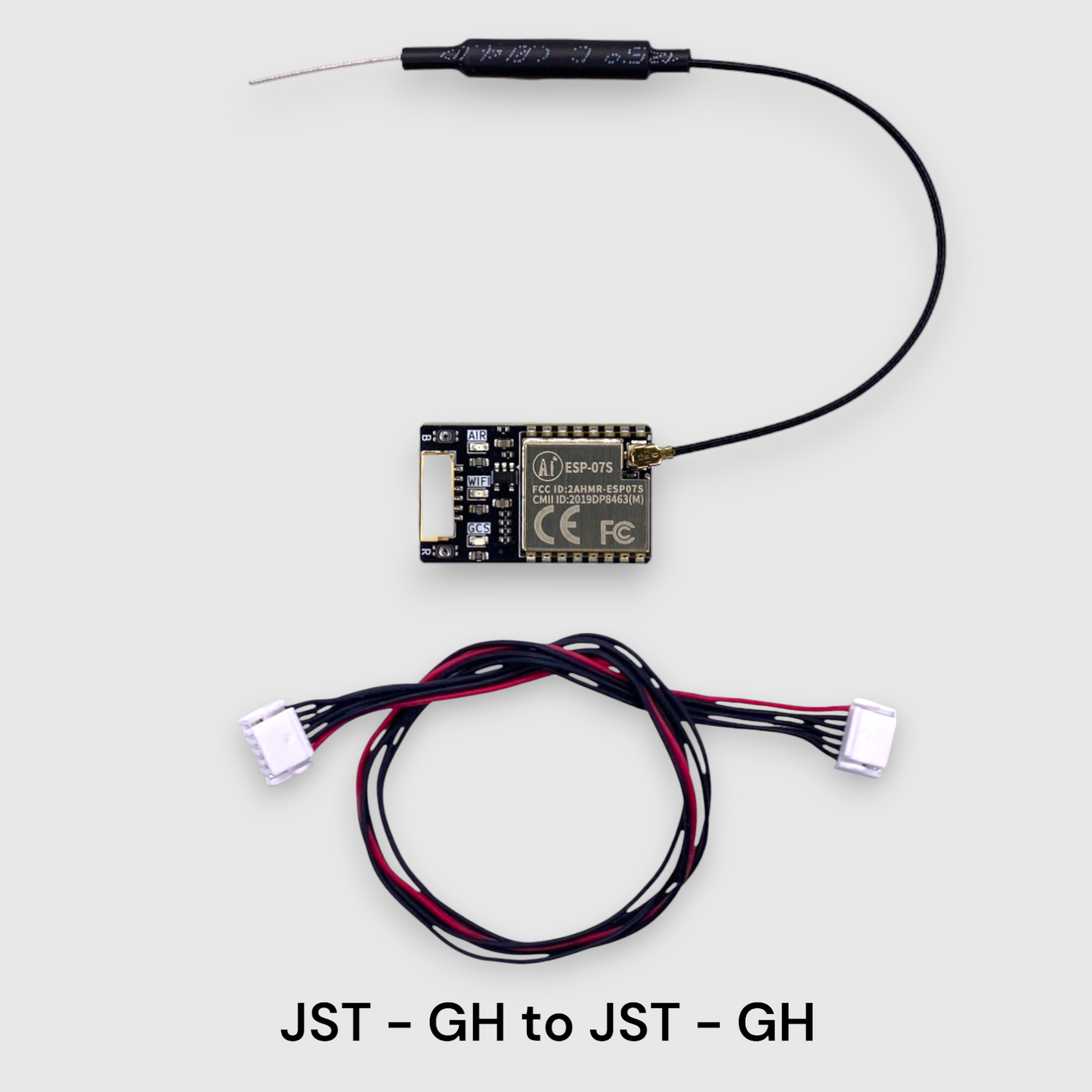

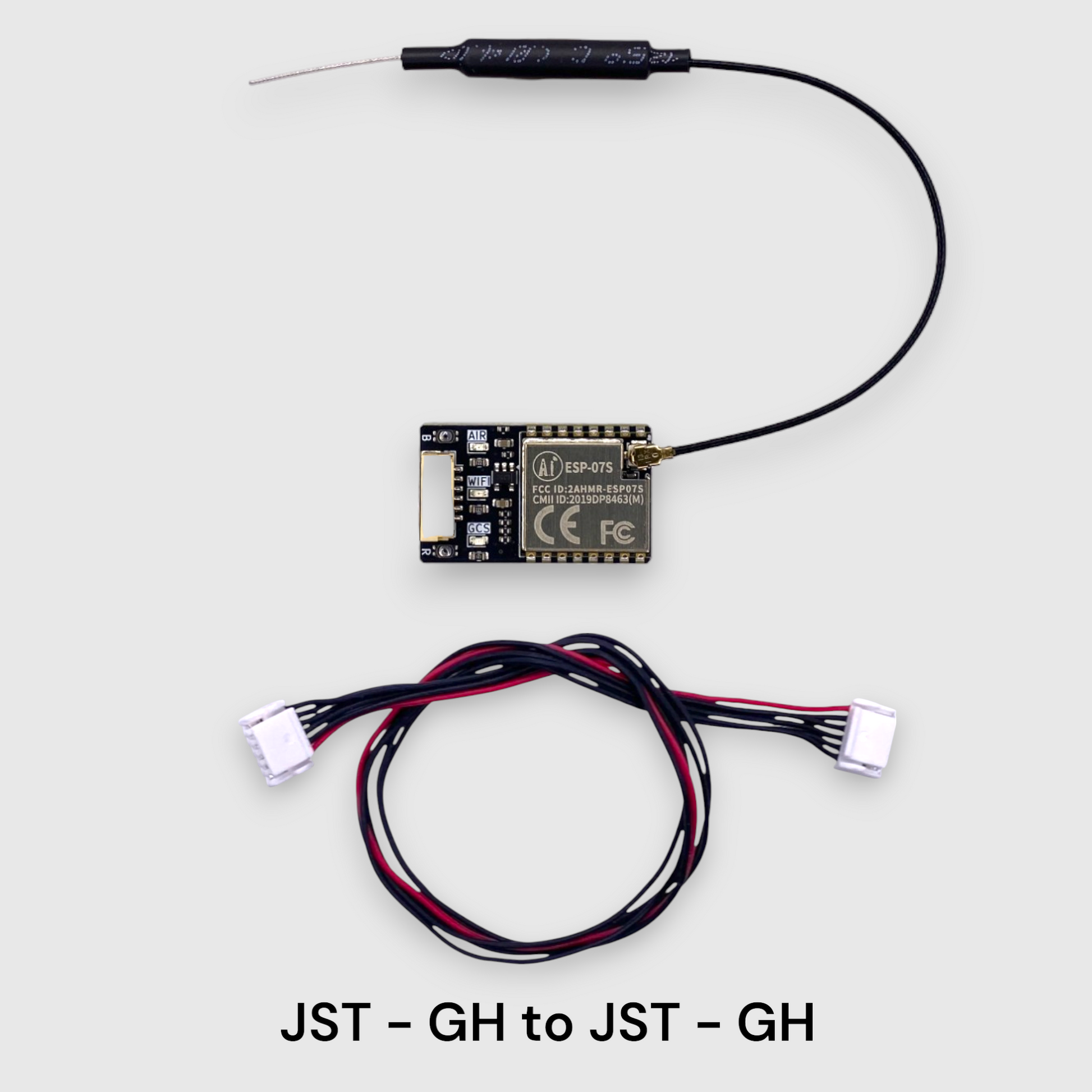

  • JST-GH cable
  • Quick start guide
  • 1 year warranty

Specifications

  • Mass: 4g
  • Max Output Power: 20dBm (~112 mW)
  • Range: up to 2.5km
  • Input Voltage: 5V
  • Continuous Current: 20mA
  • Peak Current: 250mA
  • Connector: JST-GH 6 Pin (compatible with Pixhawk and Cube Telem port)
  • Size: 30x18x6mm

See the resources section for our GitBooks documentation!

Resources

Kahuna User Guide

Latest Firmware

Certification

Compliance

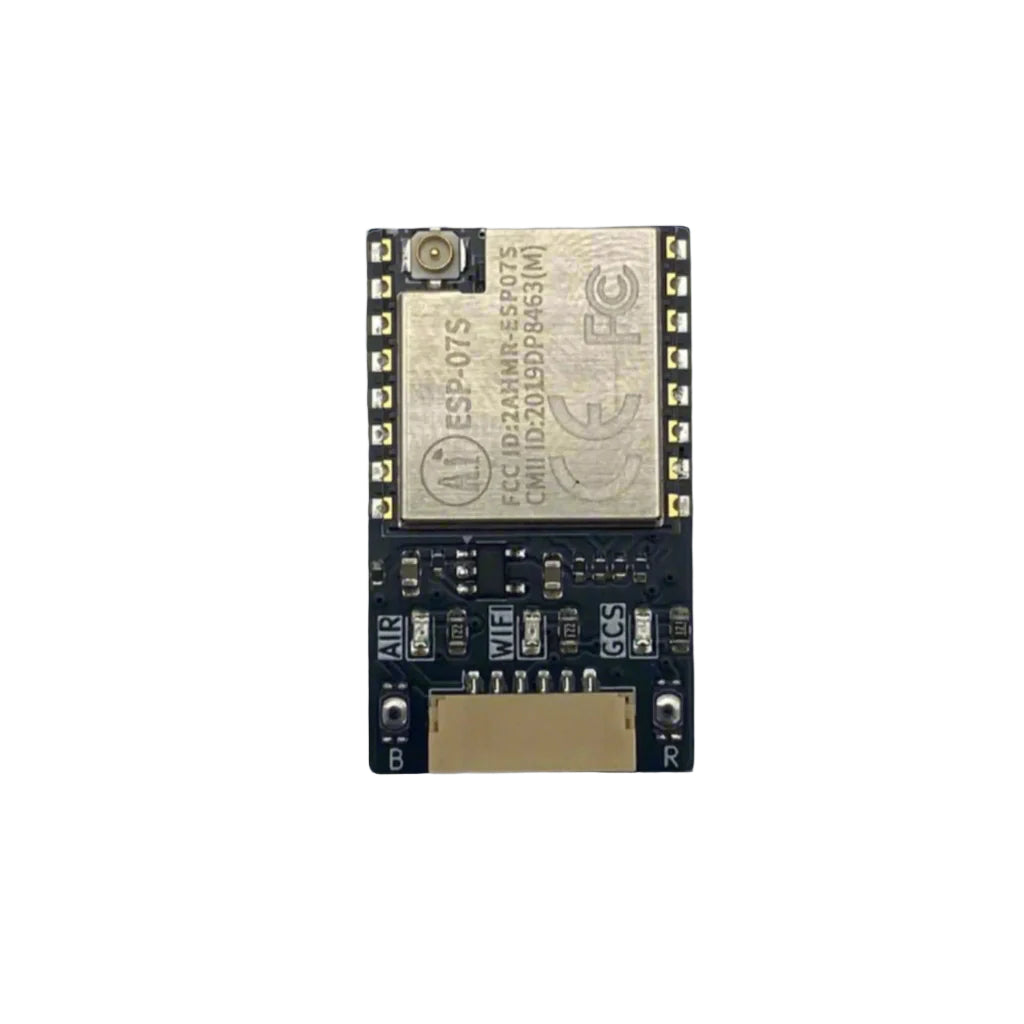

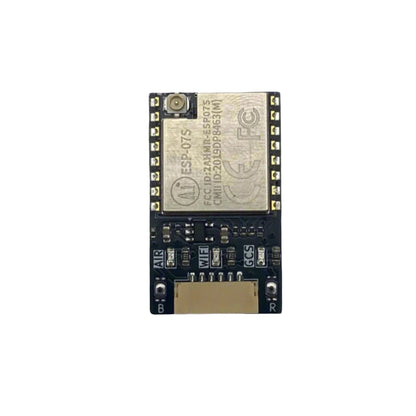

The Kahuna incorporates the ESP07S radio module produced by RF Solutions which meets the essential requirements of the European Radio Equipment Directive 2014/53/EU and has been tested to European Harmonised Standards and CE marked. A copy of the EU Declaration of Conformity can be accessed on the RF Solutions Website.

The ESP07S also conforms with UK standard IR 2030 under the definition of a Wideband Data Transmission System (IR2030/7/1).

The Kahuna conforms to Directive 2014/53/EU when used with the supplied firmware for its intended purpose and is used in accordance with the user guide. The Kahuna must be used with an antenna with a gain of 4dBi or lower in order to conform to UK standard IR2030/7/1.

The Kahuna is designed as a component to be integrated into other projects or product prototypes, the user is responsible for compliance with local regulations for radio transmitters.

View full details

Effortless Integration

Seamlessly connects to any laptop or tablet using Mission Planner or QGroundControl, ensuring smooth drone operations without the hassle.

Multi-Drone Management

Effortlessly manage and communicate with multiple UAVs at once, perfect for swarm robotics and large projects.

Long-Range Performance

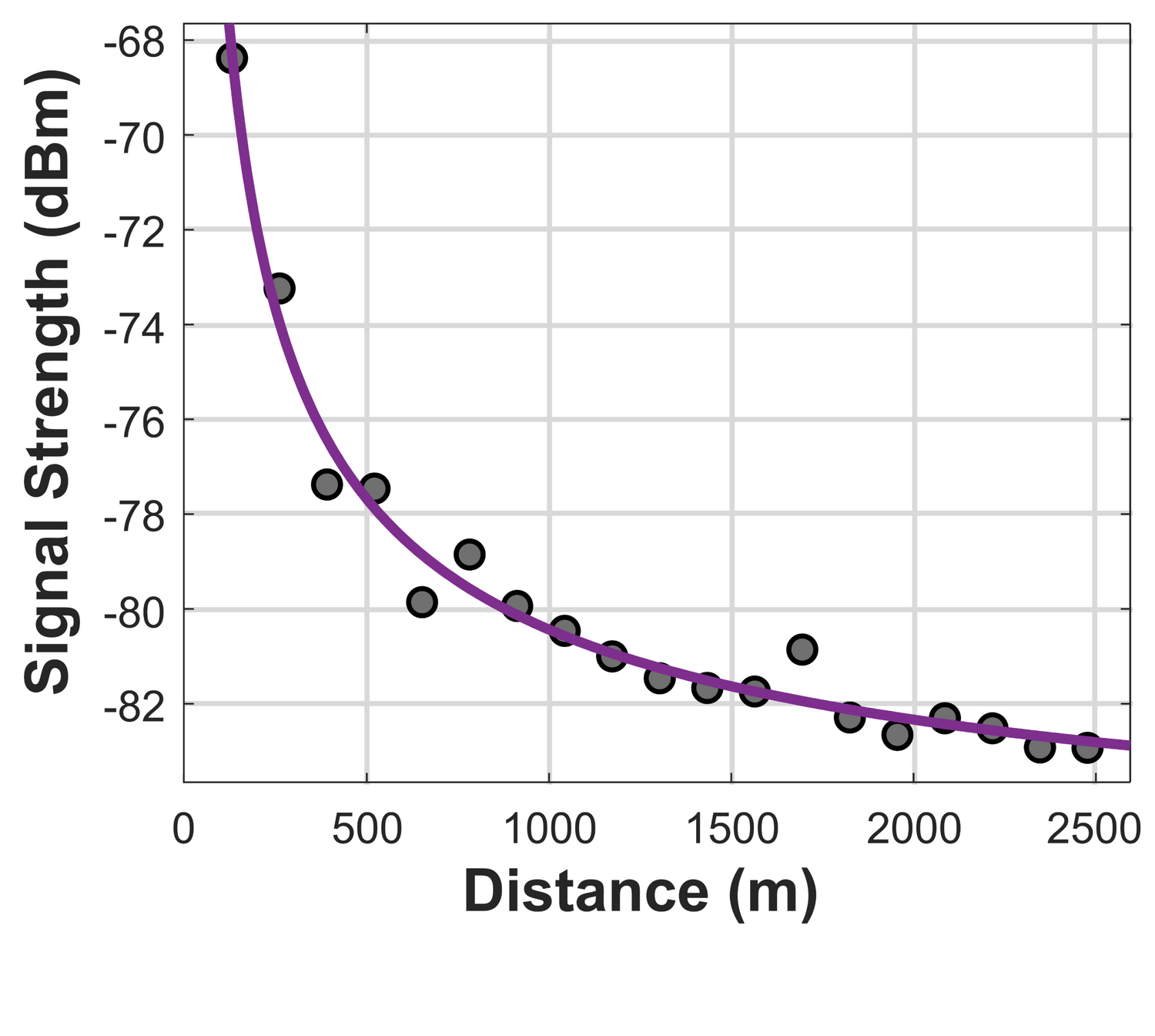

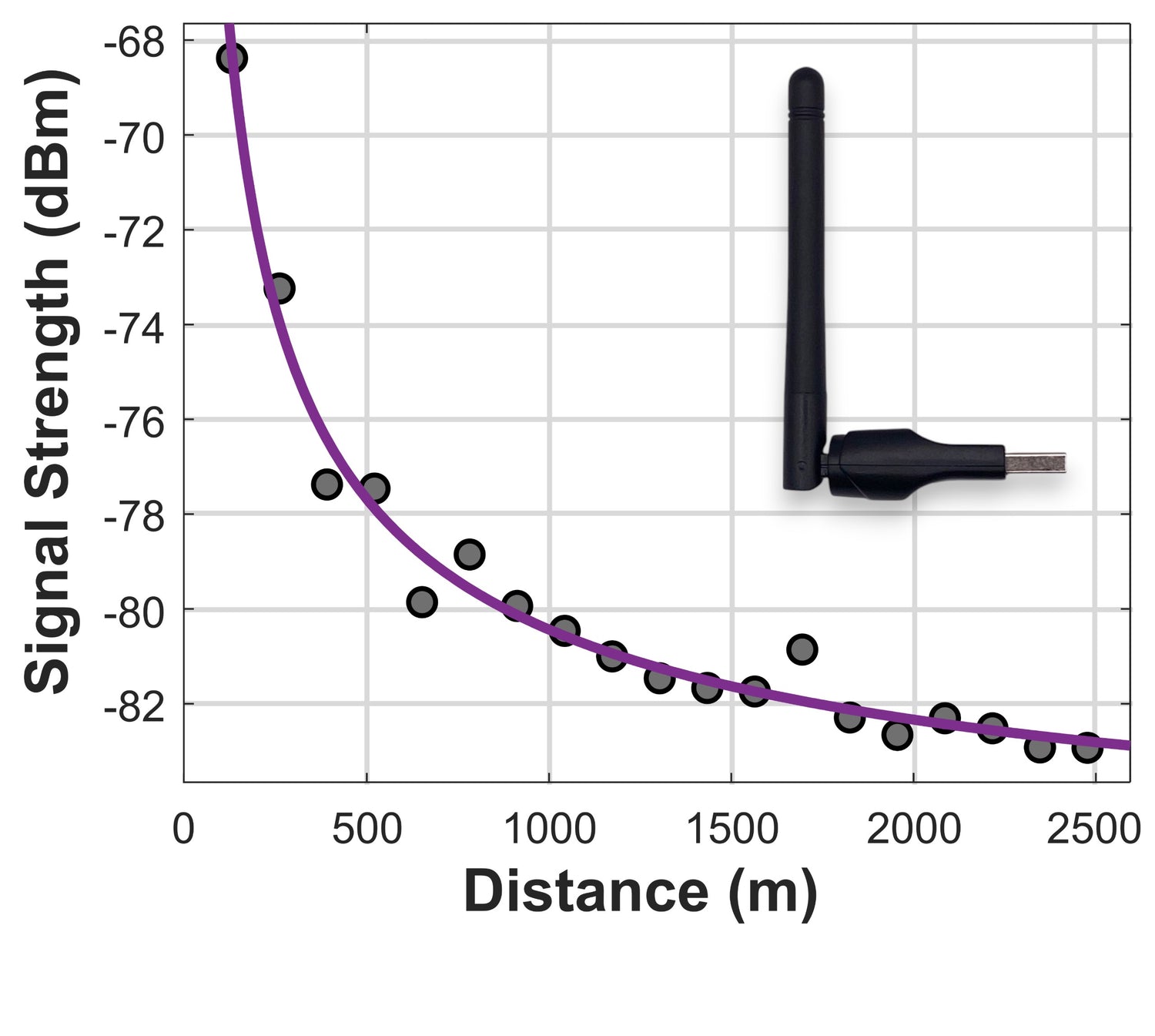

Enjoy reliable communication over extended distances with the external antenna, tested up to 2.5km with a USB wifi Dongle and 3dB dipole antenna.

Customizable Antenna

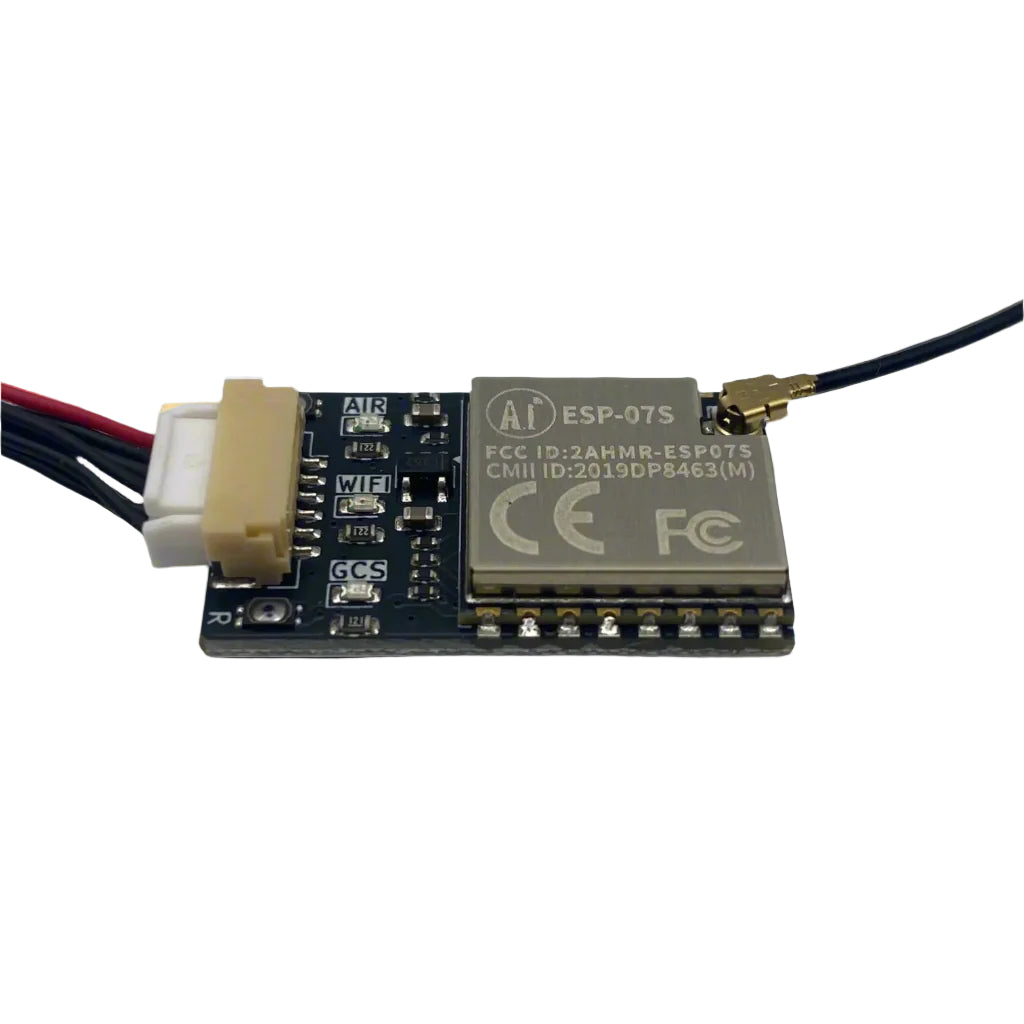

U.FL connector allows you to choose and position the best antenna for your needs, unlike fixed options on competing products.

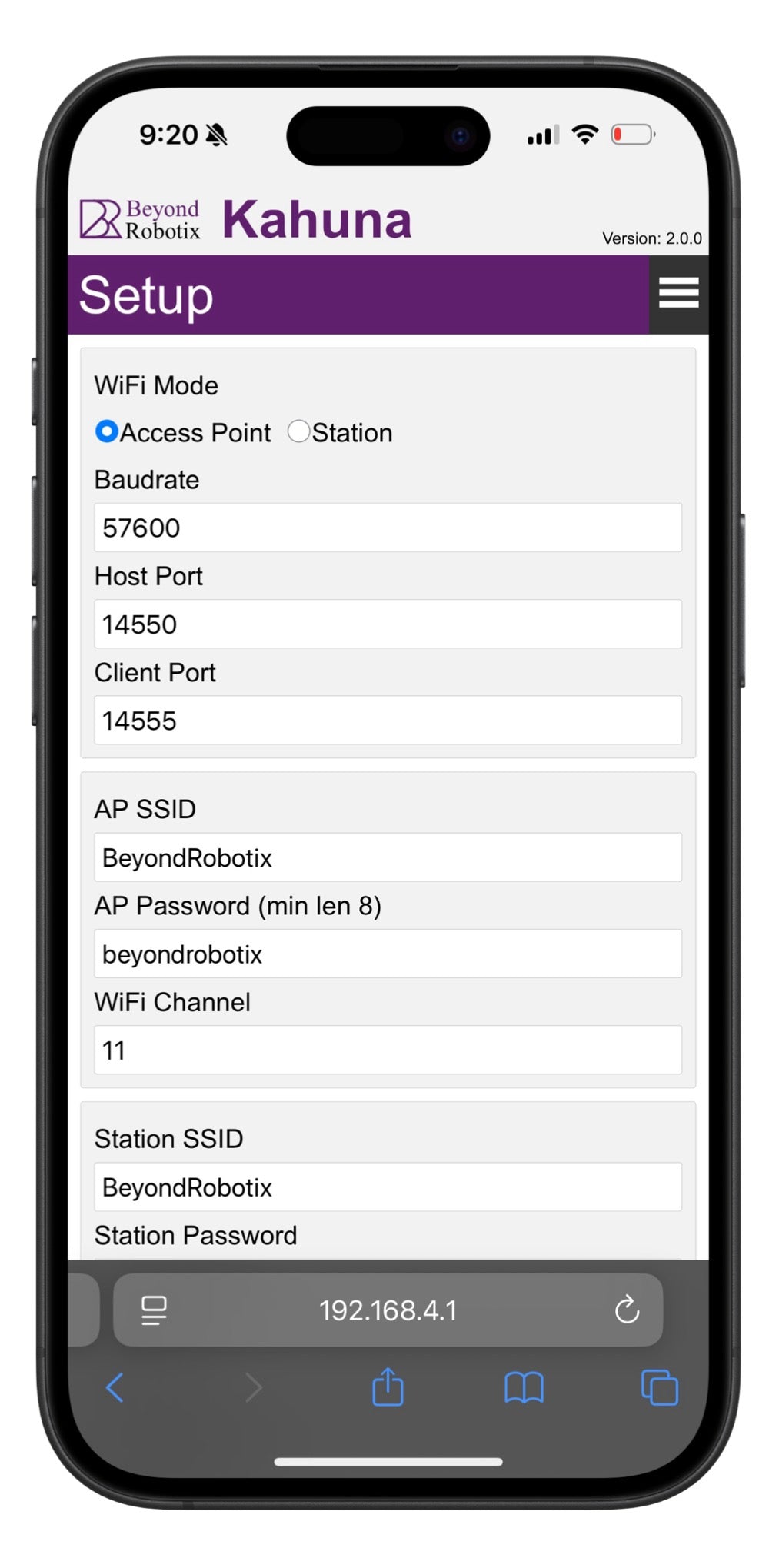

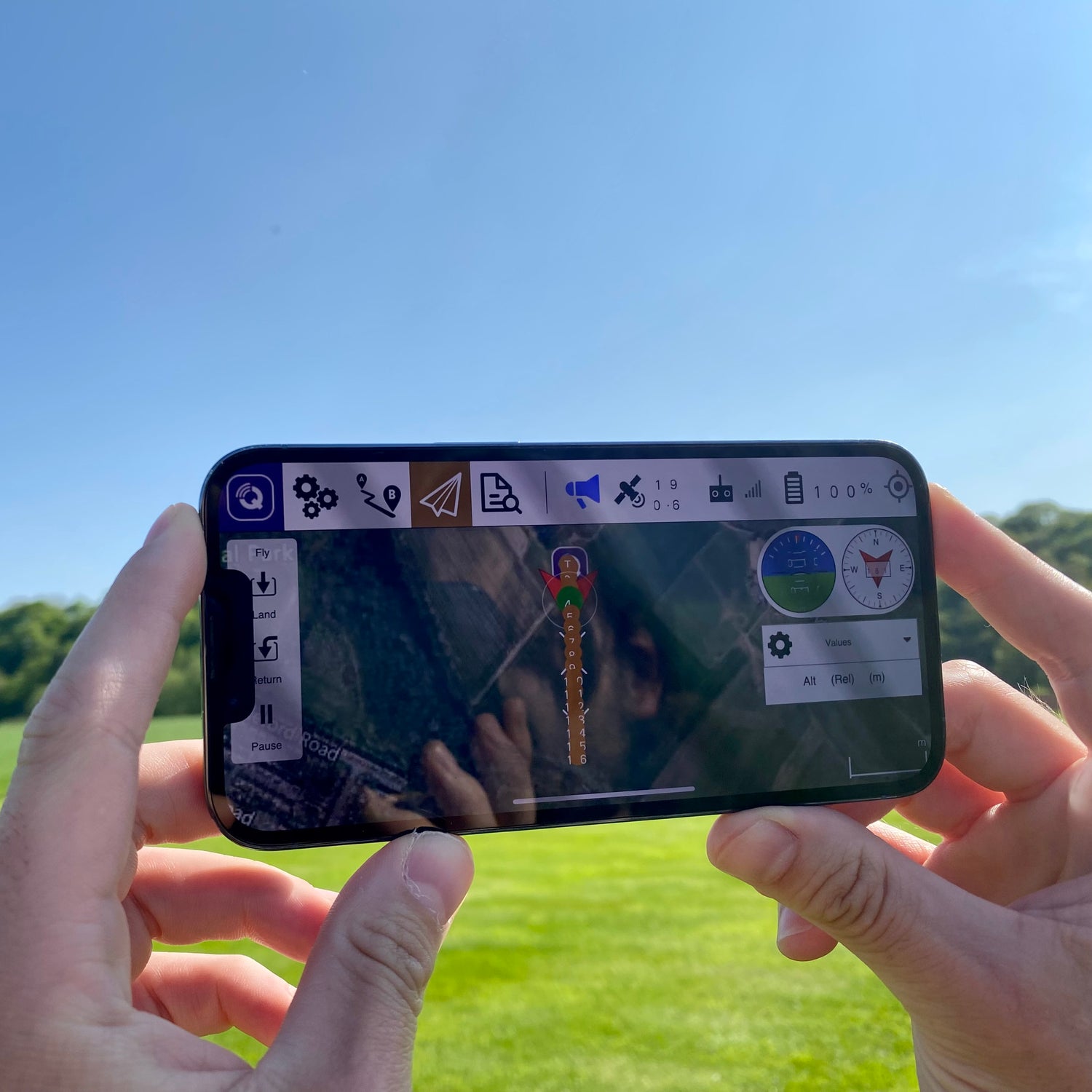

Kahuna User Interface on an iPhone

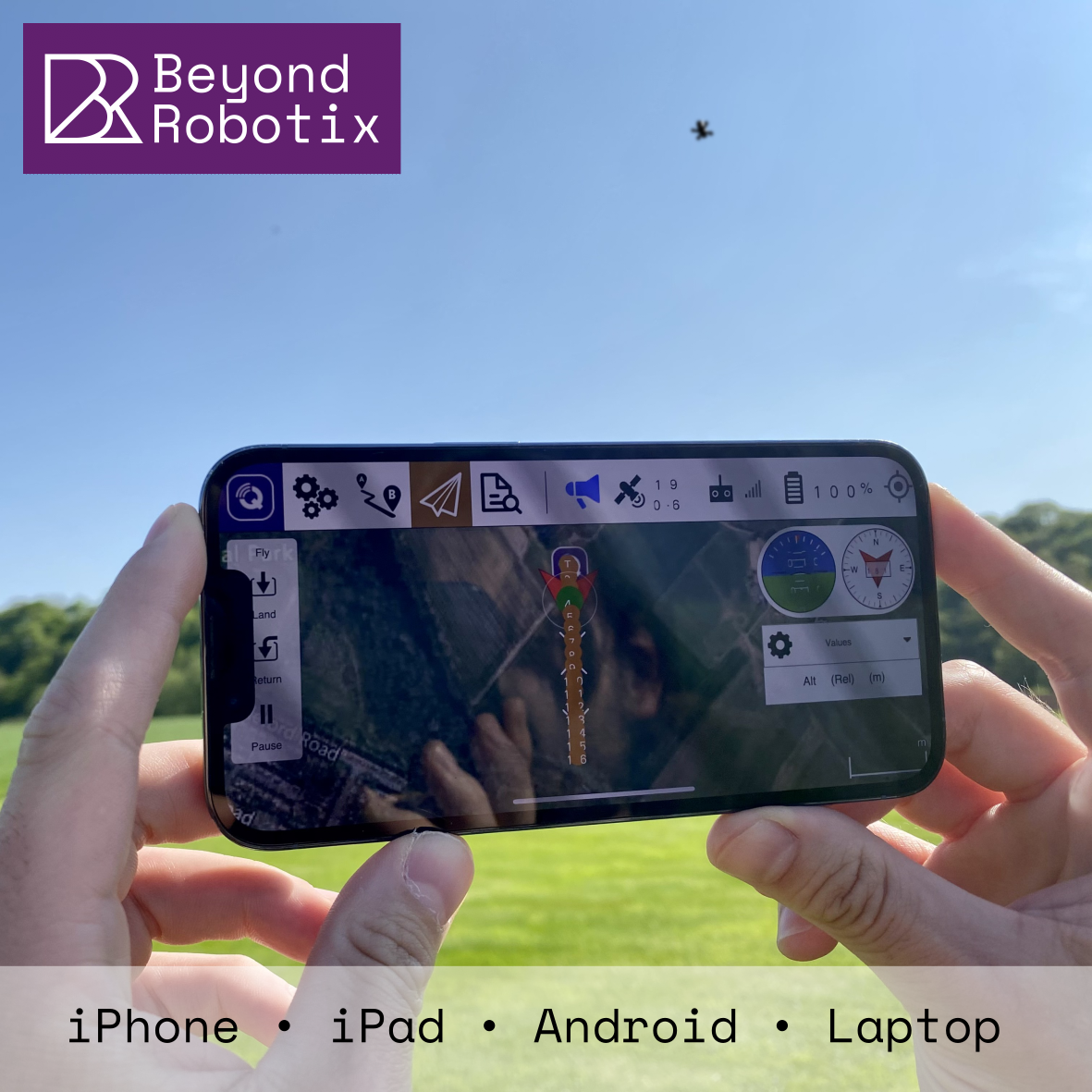

Mobile Optimized UI

Easily change settings in the field with our intuitive mobile interface, giving you flexibility and control wherever you are.

No Soldering Required

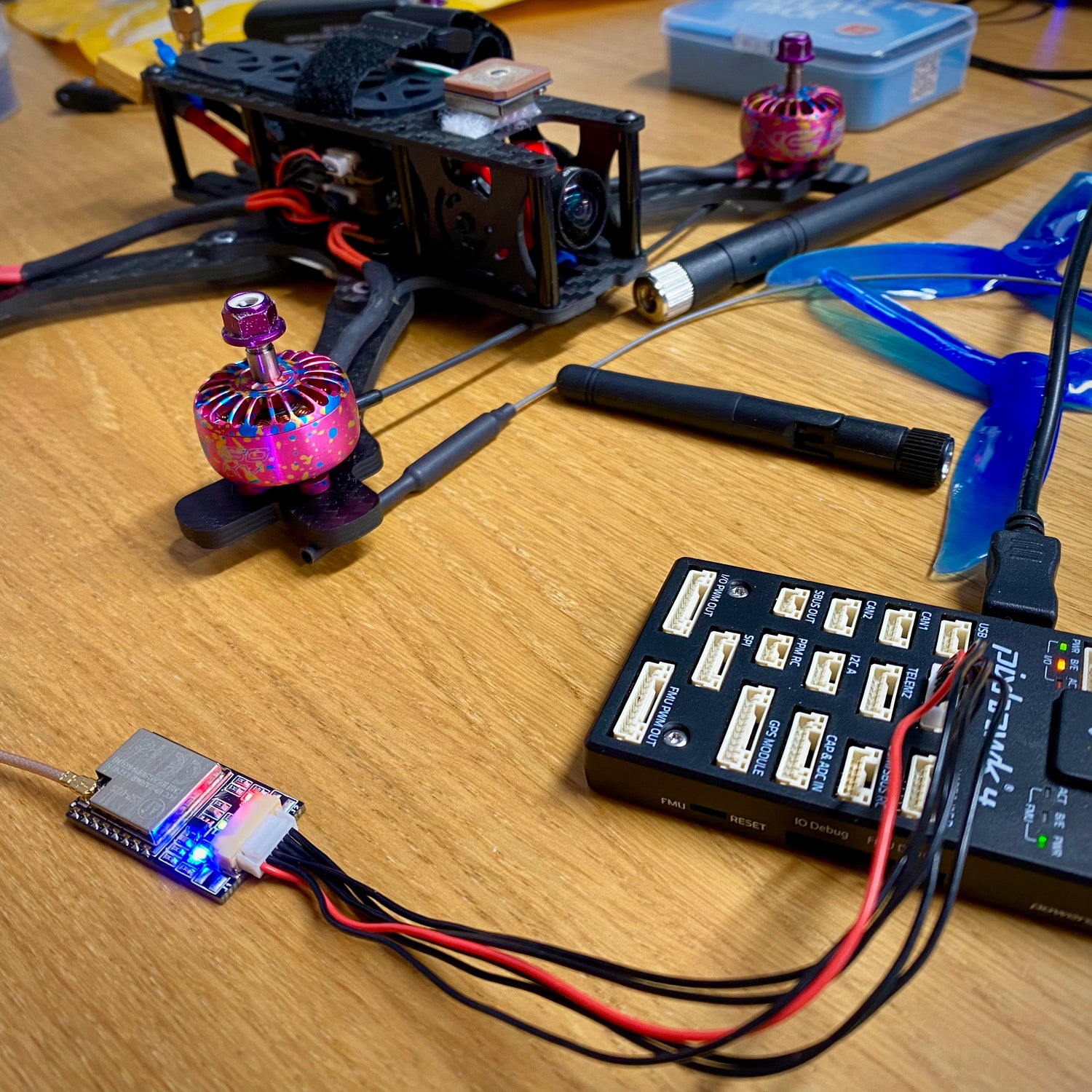

Compatible with Pixhawk and Cube autopilots using a JST-GH connector, eliminating the need for soldering.

Simplified Debugging

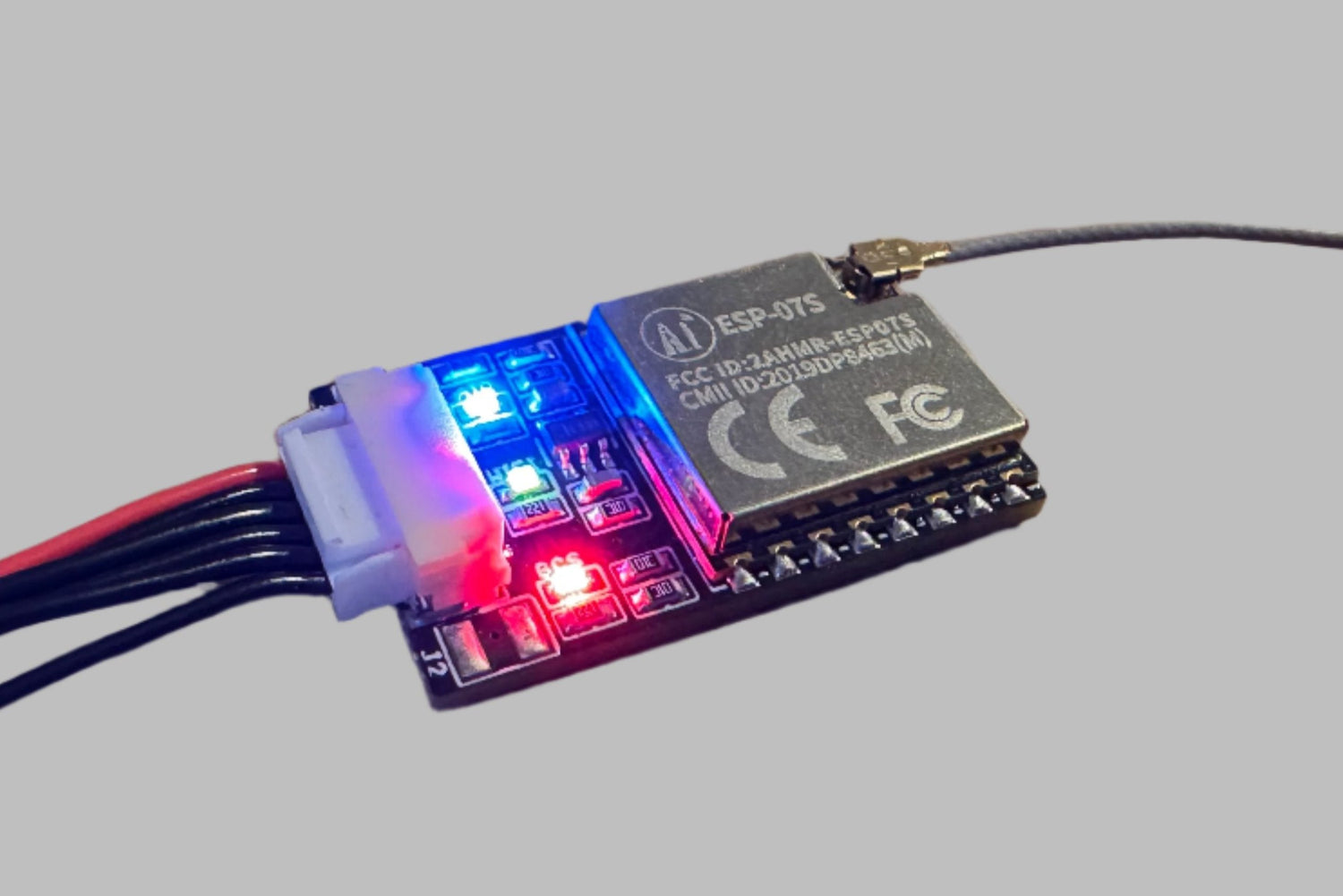

Status LEDs provide instant feedback on connection status, making it easier to diagnose and troubleshoot.

FAQs

What autopilots are compatible with Kahuna?

Kahuna is tested and compatible with Ardupilot and PX4, any other autopilot firmware which publishes mavlink over serial should also work with Kahuna. Kahuna is plug-and-play with Cube and Pixhawk 2 and later autopilots through a 6 pin JST-GH connector. Other autopilots can be connected with an adapter cable.

How far can Kahuna communicate?

A maximum range of 2.5km has been achieved using a USB Wi-Fi dongle and the supplied 3dB dipole antenna. If using the built-in antenna in a phone, tablet or laptop range will be determined by the specifications of the device's antenna.

Is there customer support available?

Yes, we offer comprehensive user guides and responsive customer support to ensure your satisfaction.

How do I get Wi-Fi telemetry from a Flight Controller?

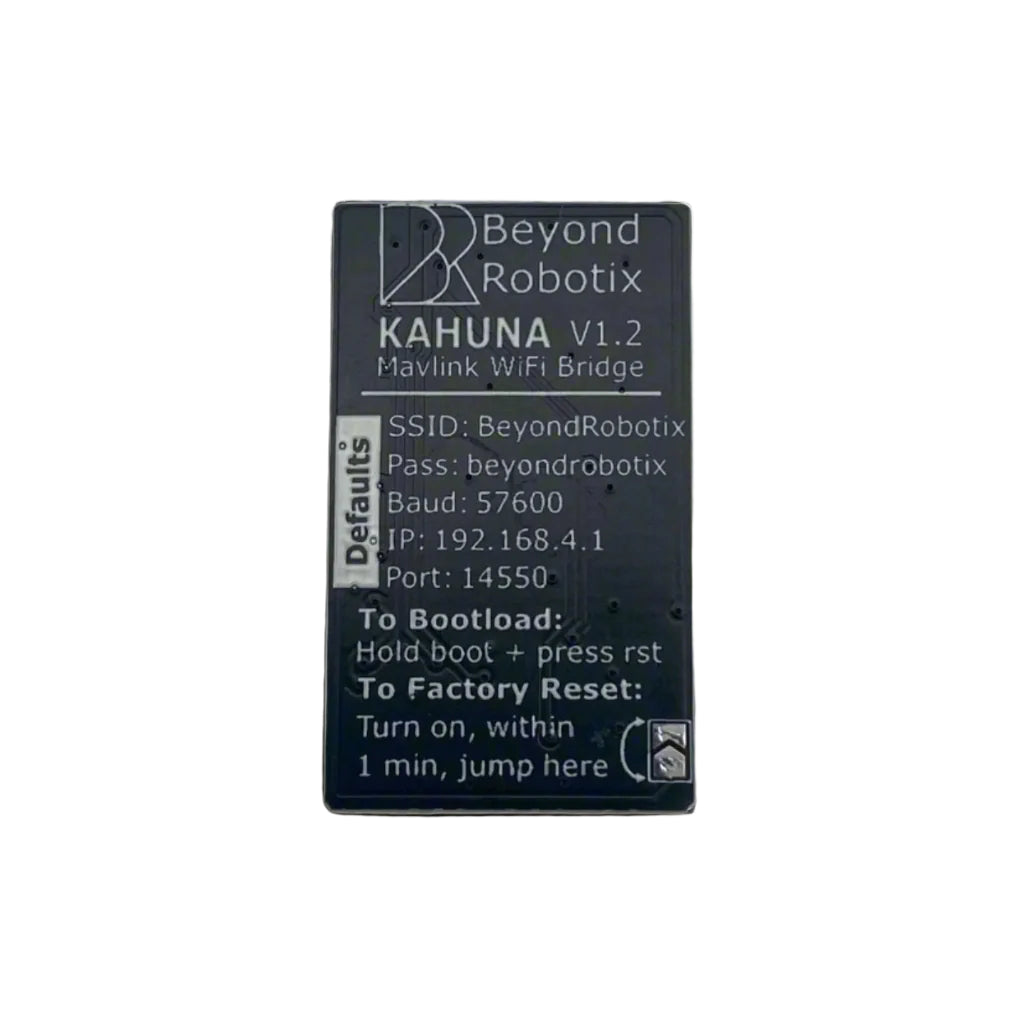

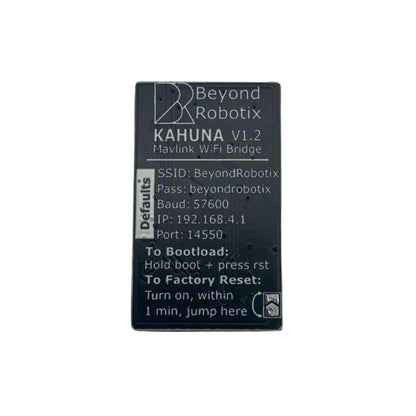

Mount your Kahuna Wing Edition to the telemetry pins on a Matek H743-WING V2, V3 or F405-WING V2 flight controller. Set the appropriate baud rate in Mission Planner or QGroundControl (default: 57600). You can now connect wirelessly to your autopilot by connecting to the WiFi access point SSID: BeyondRobotix Password: beyondrobotix. Head to 192.168.4.1 in a browser to adjust settings. The full getting started guide is available in the Kahuna User Guide

How do I extend the range of MAVLink Wi-Fi telemetry?

The Kahuna has a U.FL connector which enables a wide range of antennas to be used. A more directional antenna such as a patch antenna can be used to increase the range of the Kahuna for the same output power.

Is the Kahuna firmware open source?

The Kahuna firmware is open source and available at https://github.com/BeyondRobotix/Kahuna.

How can I get telemetry from multiple drones on one ground station?

When connected to the Kahuna access point head to 192.168.4.1 in a browser and change the mode to station mode. Enter the SSID and password of an existing WiFi network and reboot the Kahuna. The Kahuna will now connect to the existing WiFi network. This process can be repeated for multiple vehicles and telemetry from all of them will be available in Mission Planner or QGroundControl on devices connected to the same network.

What is the maximum range of MAVLink Wi-Fi telemetry?

In testing a range of 2.5km was acheived using a small dipole antenna on the Kahuna and a 2.4Ghz wifi dongle on the ground station.

How do you set up the Kahuna with a Flight Controller?

Full details on setting the Kahuna up with a Flight Controller are available in the Kahuna User Guide

Experience Kahuna Today

Discover why drone enthusiasts, startups, and educational
institutes trust Kahuna for their UAV projects. Order now and take your
drone-building experience to the next level.

Customer Reviews

Based on 13 reviews
100%
(13)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
100.0
P
Paul Williamson
Great product, highly recommend

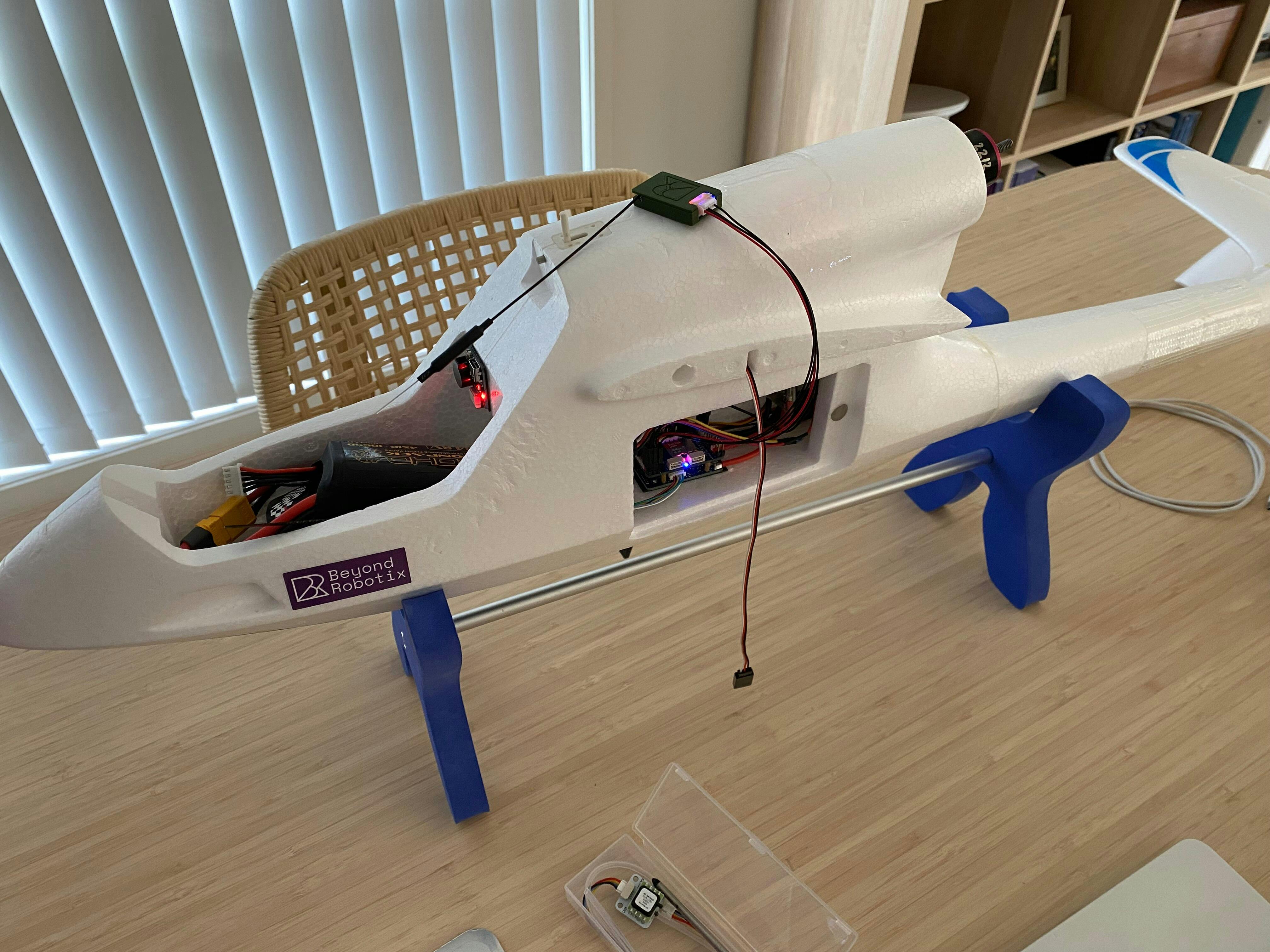

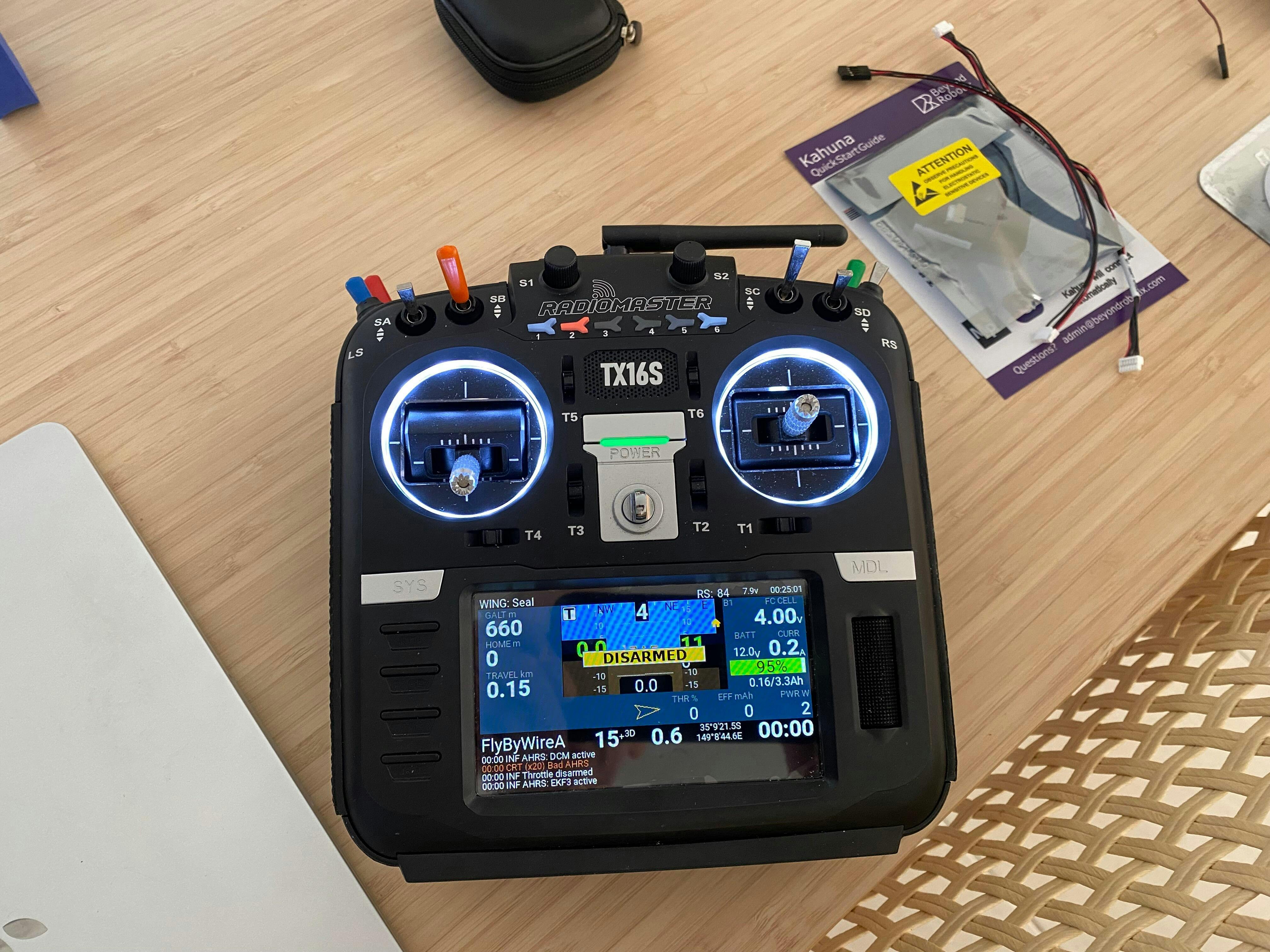

I purchased a couple of these and I can highly recommend. After trying WiFi telemetry with the original Pixracer, I was left disappointed with the range - great for bench setup, but of limited use in the field. The Kahuna changed my mind about WiFi; easy to setup, great quality, and good range. Inexpensive lightweight telemetry that just works.

User picture User picture User picture
J
Jake Ward
works great!

No complaints, works a charm, simple and easy to set up.

L
L.C.
Kahuna success

This was the easiest telemetry module to set up that I have ever had. Very happy with my new Kahuna , thanks

S
S.P.
PLUG AND PLAY

Very straight forward to set up and use

D
Deon Van der Merwe
Easy to use; effective

The Kahuna made establishment of a wireless connection between Mission Planner and Pixhawk autopilot seamless and straight forward. It is truly plug and play, requiring no complicated setup process or adjustment of parameter values. I used it on a rover. Range was limited by the reach of the WiFi signal (I had around 100 m range on a ground vehicle in a noisy WiFi environment). Range will probably be significantly better in an aircraft and a less noisy environment. A great product. Highly recommended!
