GNSS and Compass DroneCAN Node

GNSS and Compass DroneCAN Node

Meter-accurate position and sub-degree orientation

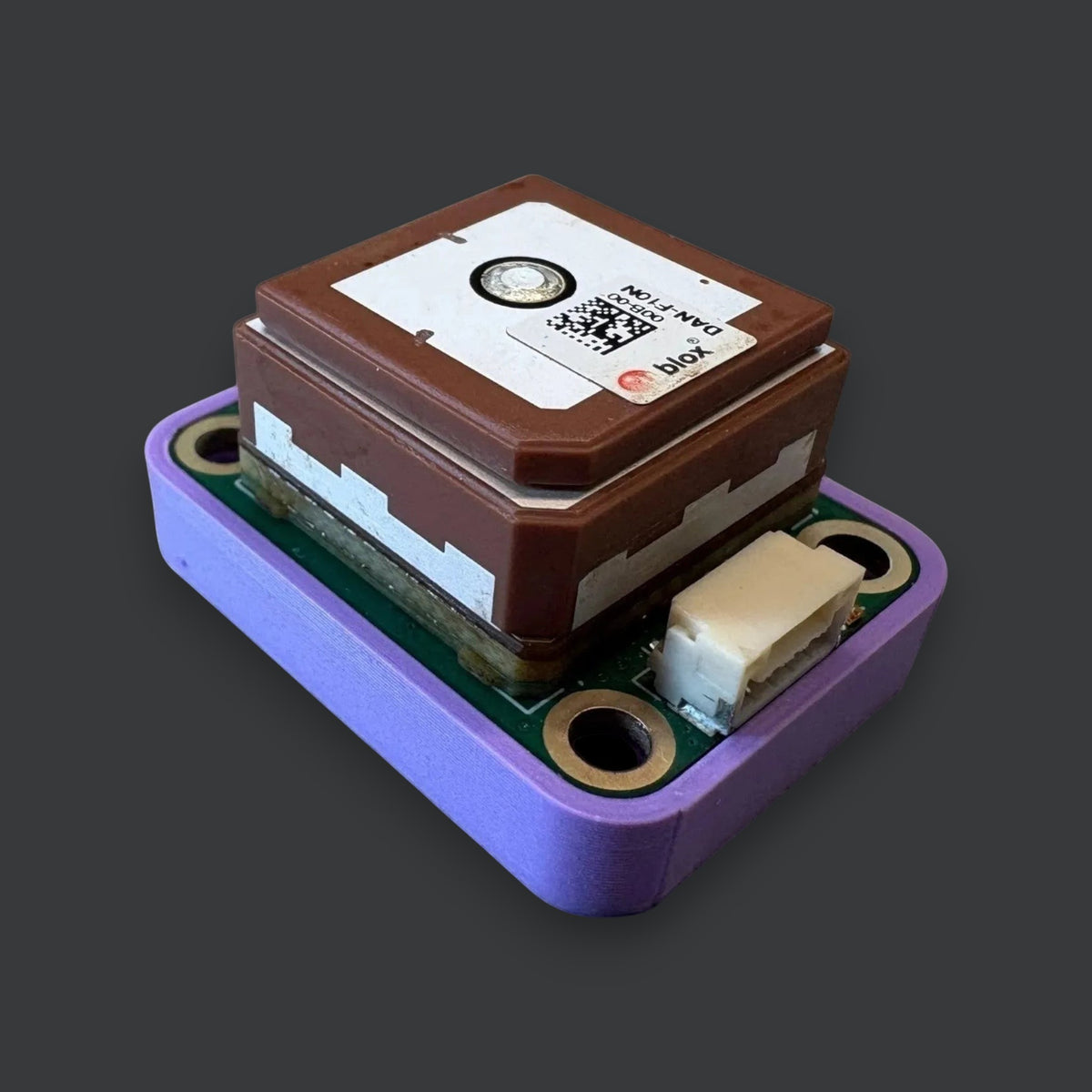

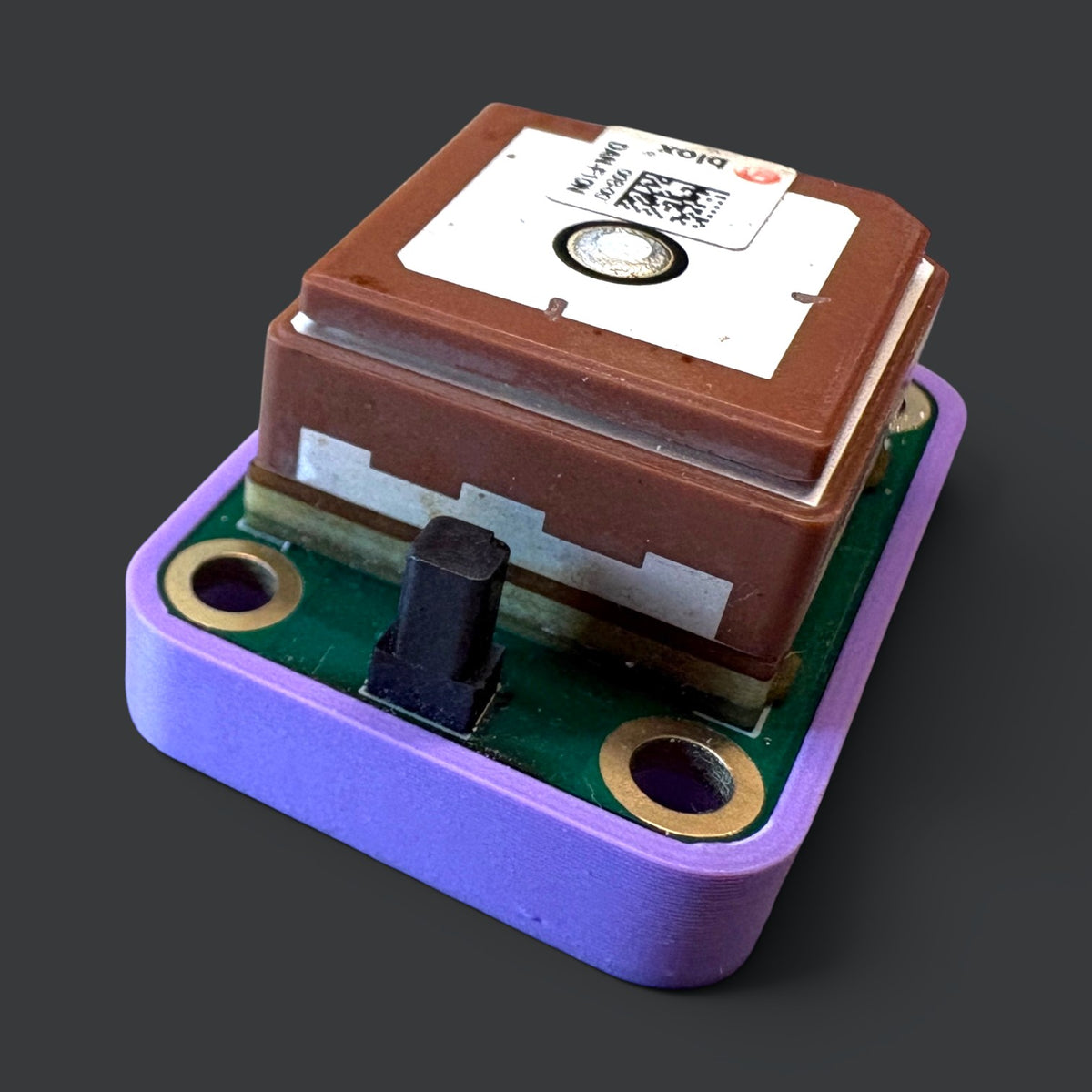

Introducing the GNSS and Compass DroneCAN Node, an extremely compact meter-accurate navigation system. Featuring the DAN-F10N Dual Band (L1/L5) GNSS receiver and the RM3100 magnetometer in a  32 x 23 mm form factor. Plug-and-Play with DroneCAN connectivity into any of your ArduPilot or PX4 projects.

This module is assembled in the UK and the PCBs are manufactured in Europe. Components are sourced selectively to ensure supply chain robustness.

Product Details

u-blox DAN-F10N dual-band GNSS (L1 + L5): 1.5 m CEP positioning (1.0 m with SBAS), with backup power for fast restarts in seconds. Tracks GPS, Galileo, BeiDou, QZSS and NavIC.

PNI RM3100 magnetometer: high-accuracy, low-noise heading, capable of sub-degree accuracy once calibrated.

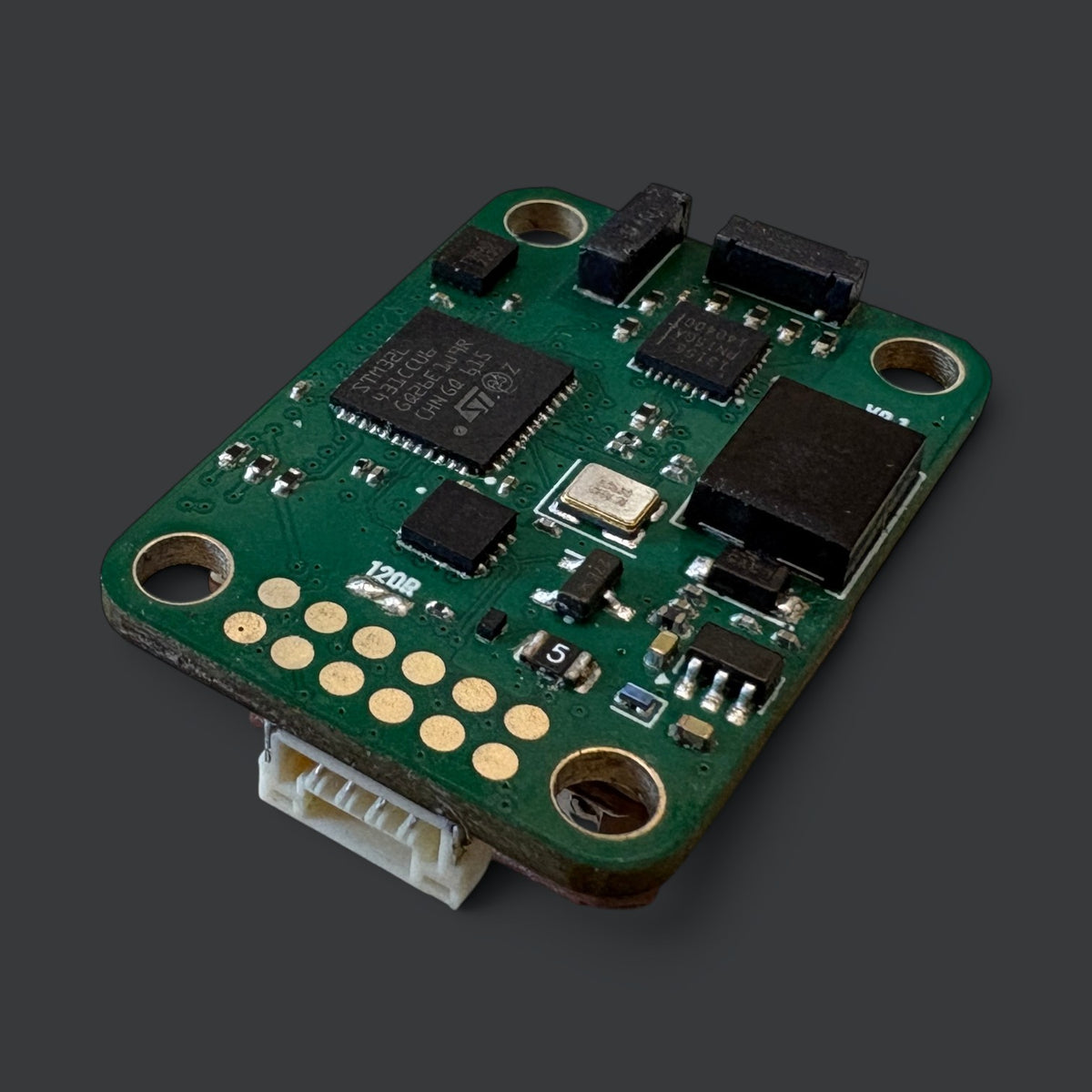

ST STM32L431 microcontroller: 256 KB flash, running ArduPilot AP_Periph for plug-and-play DroneCAN.

What's Included
  • Pathfinder GNSS and Compass DroneCAN Node
  • 200 mm Shielded CAN Cable
  • Removable Protective Case

Specifications

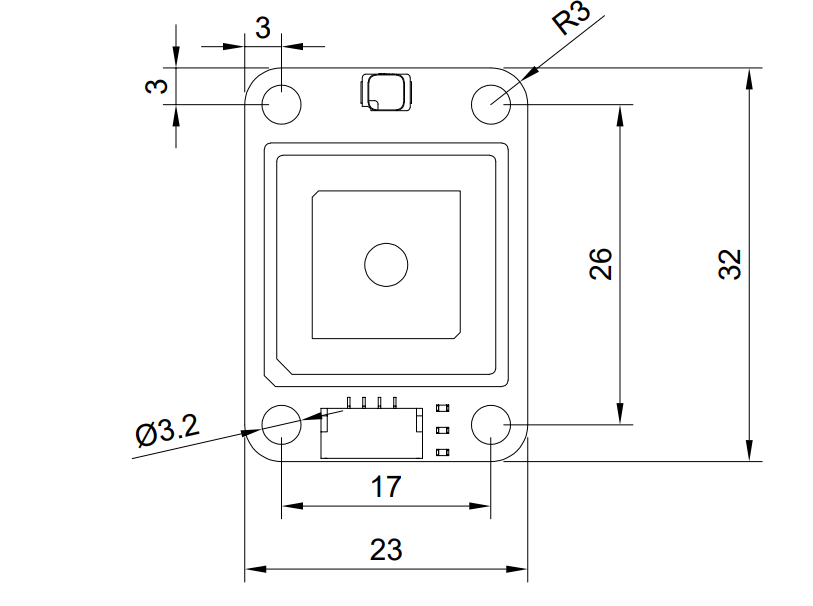

  • Dimensions: 32 ×23× 16 mm
  • Mounting: 26 × 17 mm hole spacing (M3 screws)
  • Weight: ~21 g (board only, no cable)
  • GNSS receiver: u-blox DAN-F10N Dual Band (L1/L5)
  • Magnetometer: PNI RM3100 3-axis magnetometer
  • Interface: DroneCAN via 4-pin JST-GH (Standard pin-out)
  • Microcontroller: STM32L431 (AP_Periph firmware)
  • Power: ~60 mA @ 4.5–5.5 V DC
  • Operating Temp: –40 °C to +85 °C (non-condensing)
View full details
Precision Navigation, Minimal Footprint

Precision Navigation, Minimal Footprint

Dual-band L1/L5 GNSS and an RM3100 magnetometer in a 32 × 23 mm DroneCAN node, for metre-level position and sub-degree heading where space is tight.

UK-Built, Western-Sourced

UK-Built, Western-Sourced

Assembled in the UK. u-blox GNSS made in Austria. PNI RM3100 magnetometer made in the Philippines.

Simple, Robust DroneCAN Connectivity

Simple, Robust DroneCAN Connectivity

Connect via CAN bus for long, interference-resistant cable runs and streamlined wiring. No fragile I²C connections or extra serial ports required. Plug-and-play with Pixhawk and PX4/ArduPilot systems that support DroneCAN.

Tested Before it Ships

Tested Before it Ships

Every Air Data Module is tested before it leaves us, and you can see the results for yourself. Simply enter the UID on our results site to pull up your individual test certificate, measured values, the tests it passed and the date of testing.
