Air Data Module
Air Data Module
Precision Airspeed Sensor and Barometer
Couldn't load pickup availability
Please note the Medium Speed [L10D] Module is available for immediate dispatch while the Low Speed [L05D] and High Speed [L30D] Modules have a lead time of 10 days.
Meet the Beyond Robotix Air Data Module, your essential sensor for acquiring accurate airspeed and barometric altitude data for demanding drone applications. Engineered for reliability and ease of integration, this module provides the critical information needed for stable flight, autonomous navigation, and performance analysis, making it ideal for researchers, commercial operators, and advanced hobbyists.
Why You'll Love It
The Air Data Module delivers high-precision barometer and airspeed outputs with a minimal error band, ensuring trustworthy data for your flight controller. Its robust case features integrated tube locking for secure pitot connections, while the dual CAN ports simplify wiring and allow for easy daisy-chaining within your DroneCAN network. Integrate essential air data seamlessly and confidently into your next drone build.
Product Details
Product Details
- Compatibility: Works seamlessly with Ardupilot and PX4
- Connectors: Pixhawk and Cube compatible JST-GH connectors
- Sensors: Available with the best in class All Sensors AUAV L05D, L10D or L30D

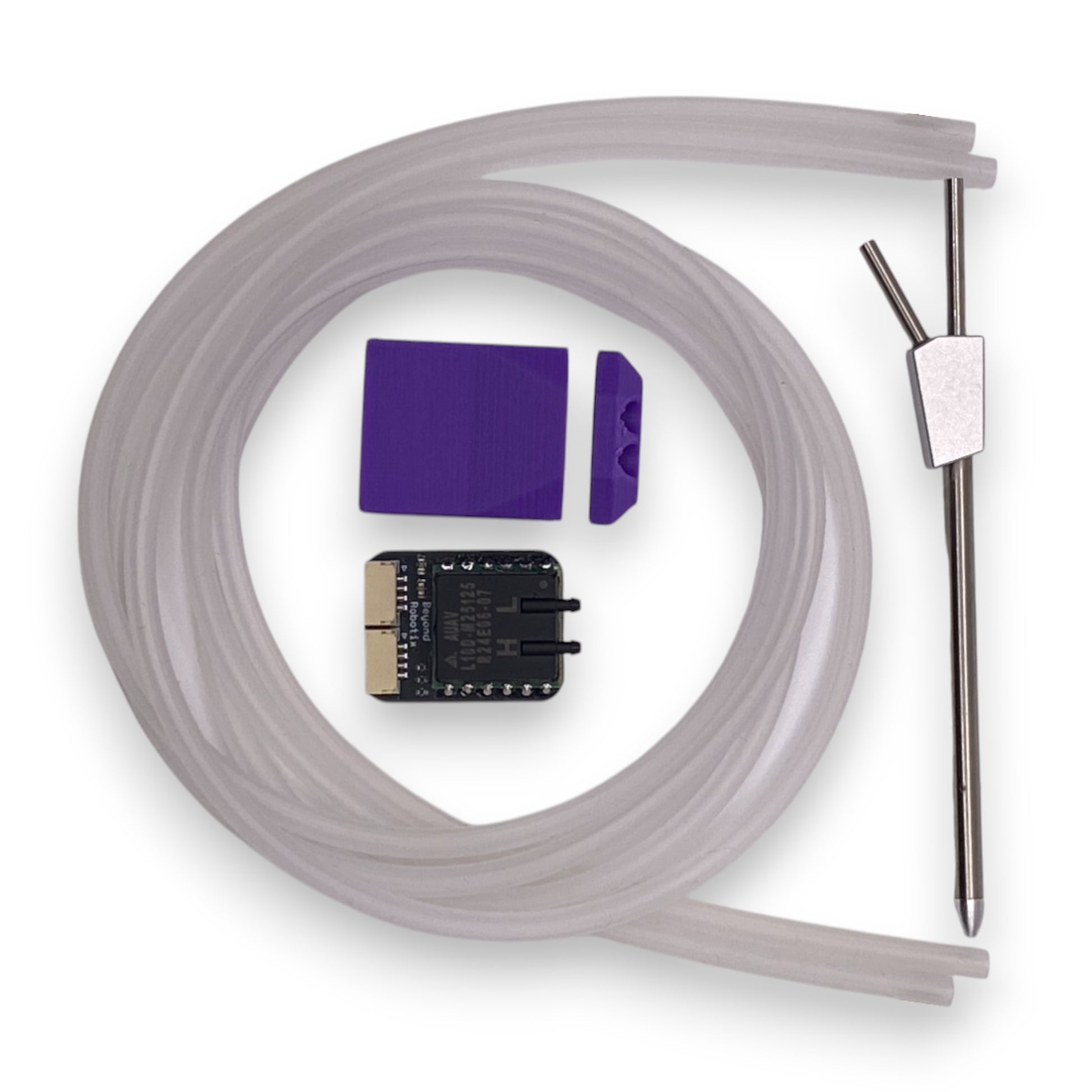

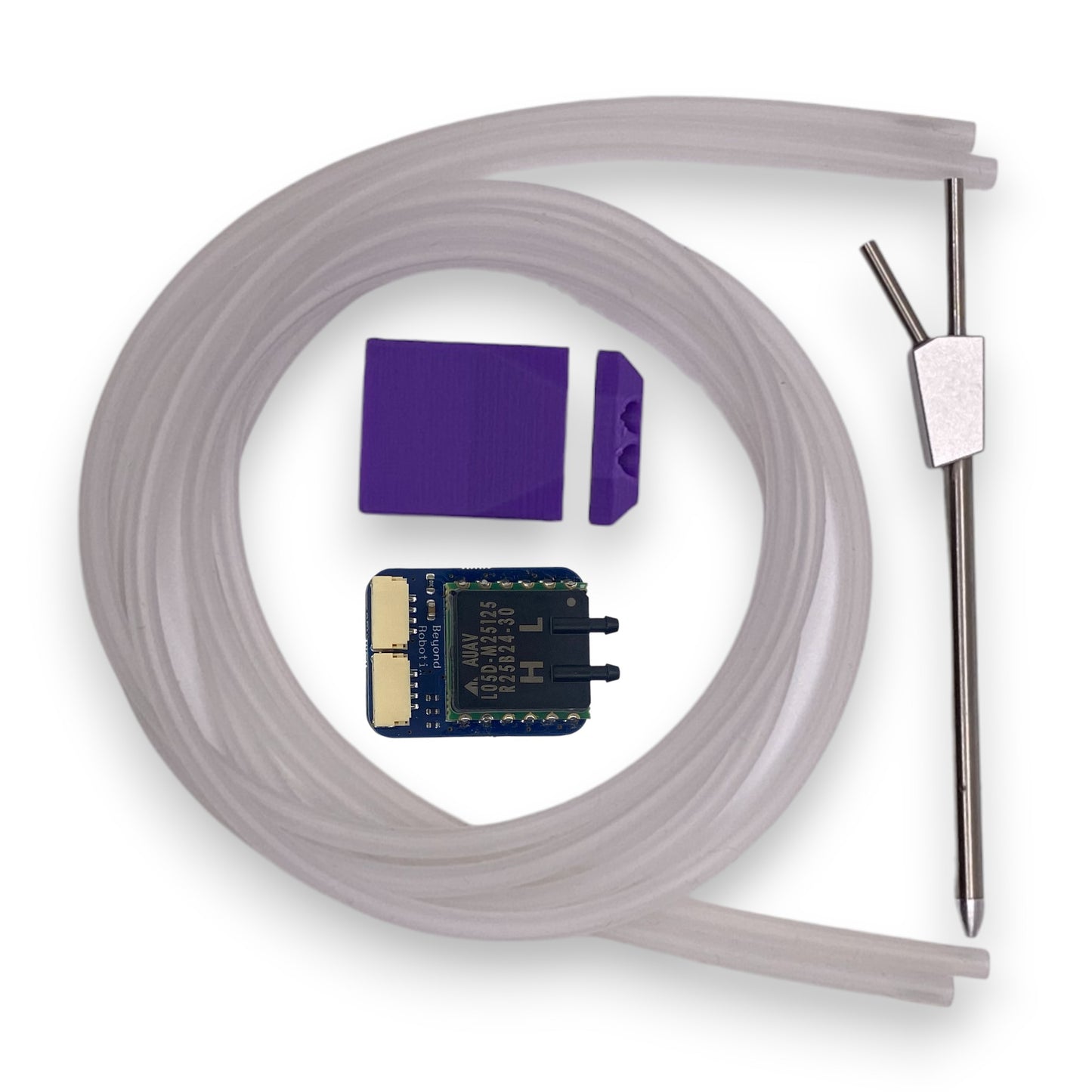

What's Included
What's Included
- Air Data Module
- Pitot tube
- Clear tubing
- Protective case
- JST-GH CAN cable
- Quick start guide
- 1 year warranty
Specifications
Specifications
- Mass: 4g
- Dimensions: 30x20mm
- Input Voltage: 5V
- Operating Temperature: -40°C - 80°C
- Absolute Pressure Operating Range: 25kPa - 125kPa
- Connectors: 2x JST-GH 4 Pin (compatible with Pixhawk and Cube CAN port)
Low Speed
- Sensor: All Sensors AUAV L05D
- Differential Pressure Operating Range: ±1.2kPa (5inH20)
Medium Speed
- Sensor: All Sensors AUAV L10D
- Differential Pressure Operating Range: ±2.5kPa (10inH20)
High Speed
- Sensor: All Sensors AUAV L30D
- Differential Pressure Operating Range: ±7.5kPa (30inH20)
See the resources section for our GitBooks documentation!
Share
Built-in Barometer
Unlike many airspeed sensors on the market, this sensor takes a differential and an absolute pressure measurement. Allowing airspeed and altitude readings through one sensor.
Using the static port of a pitot tube allows reliable altitude measurements, avoiding issues with internal autopilot barometers which can be affected by internal fuselage pressure changes.
Good static pressure measurments will enable improved GPS denied operation over autopilot internal barometer hardware.

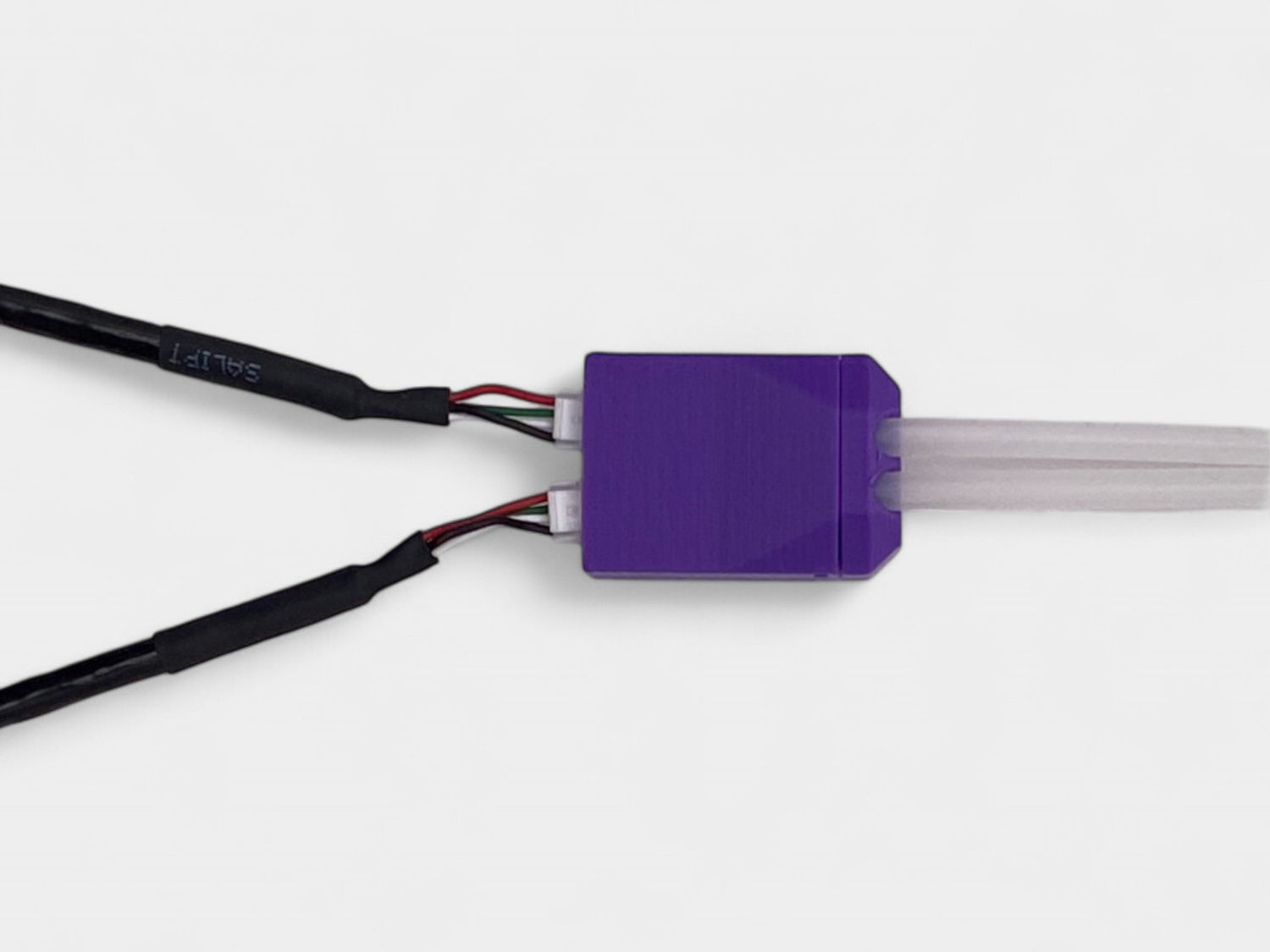

Robust by Design
The included case locks the air tubes in place so you don't have to worry about losing air data when you're pushing the limits of your aircraft.

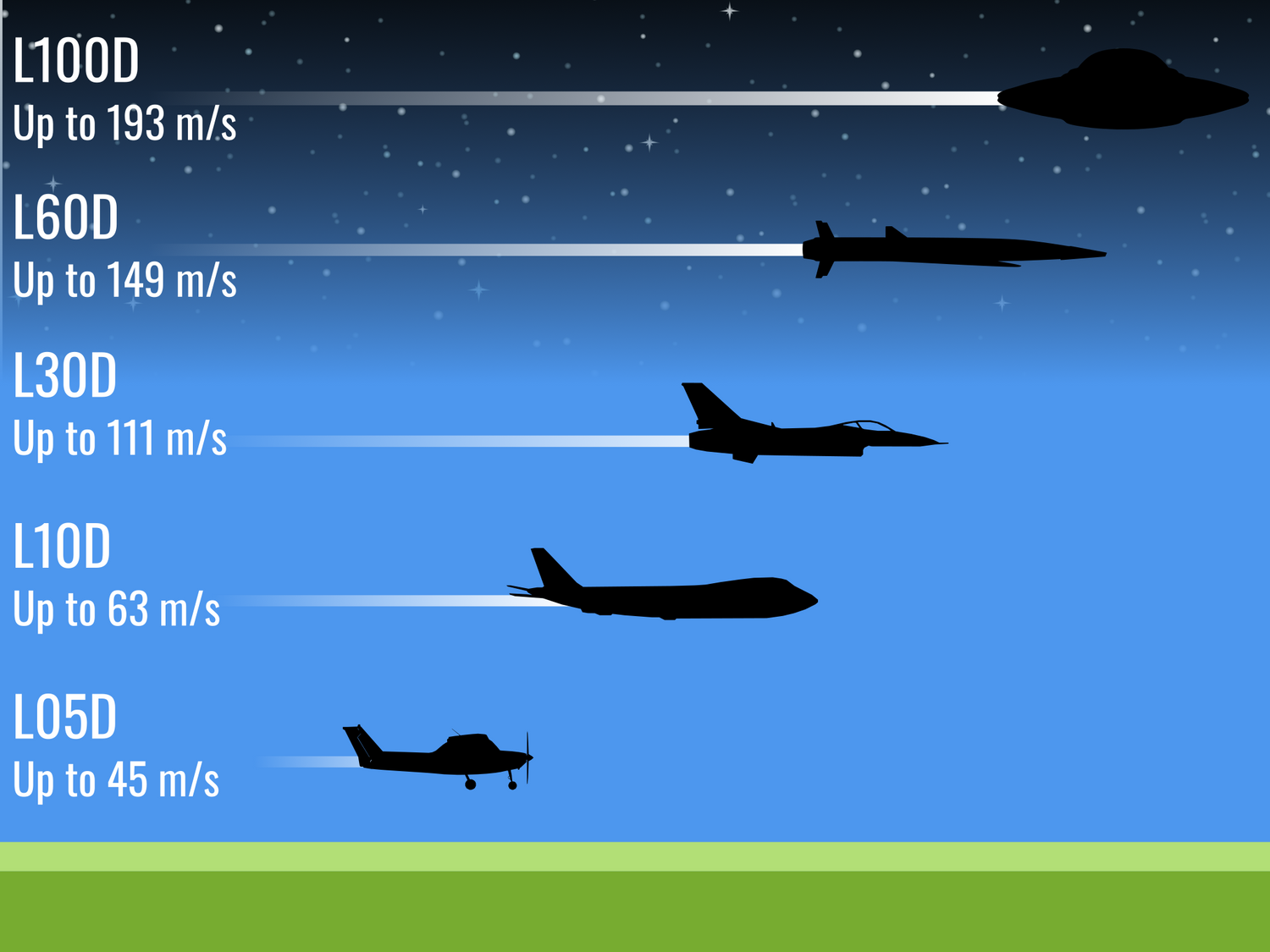

Range of sensors to suit your speed
Choose from the low, medium and high speed versions of the Air Data Module to get the right sensor for your use case, from slow flying all the way up to 111m/s.

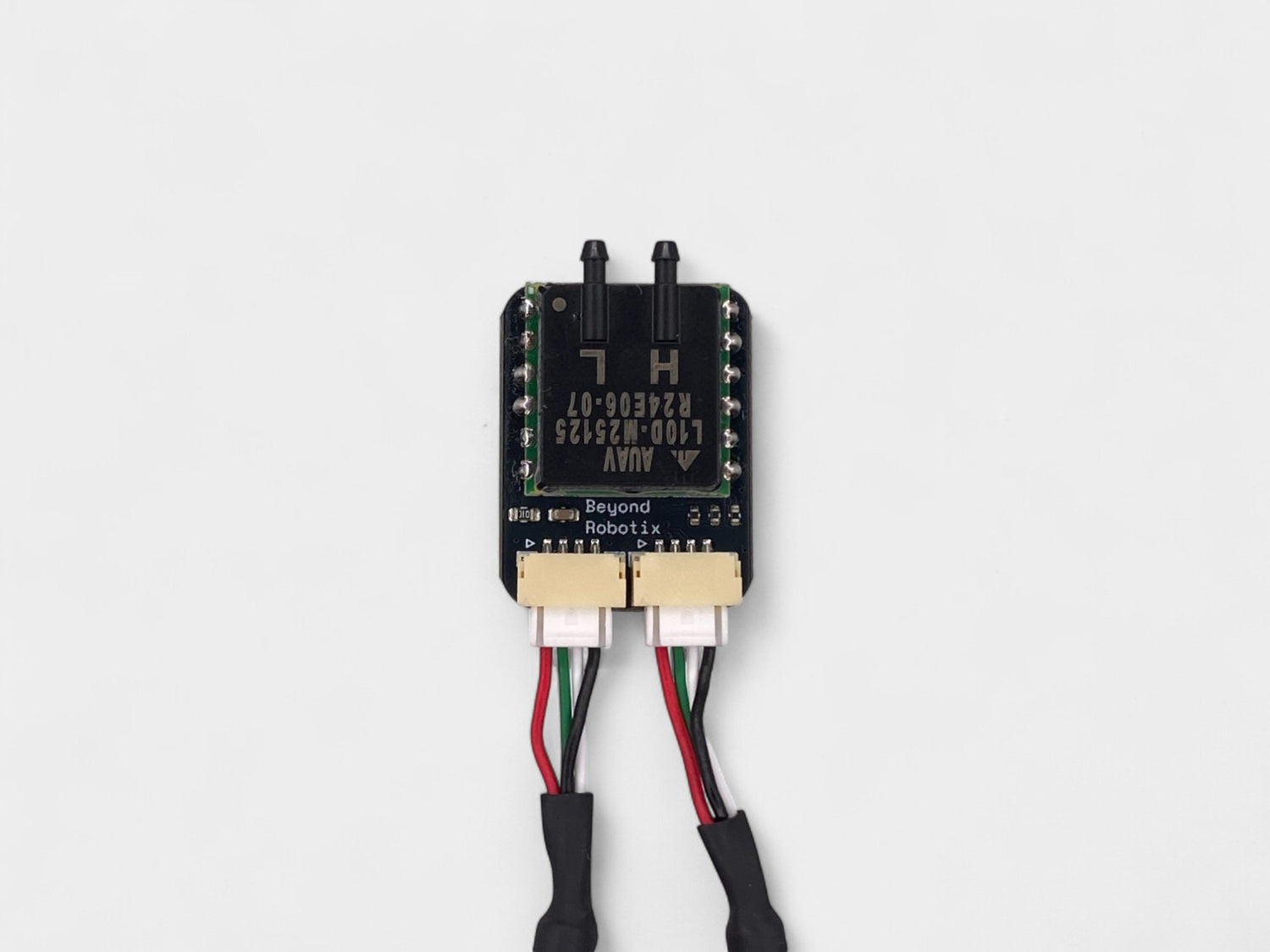

Flexible Integration
Dual CAN ports take the headaches out of wiring, easily daisy chain the Air Data Module with other nodes in your DroneCAN network using the Pixhawk and Cube compatible JST-GH connectors.
FAQs
What is the Beyond Robotix Air Data Module?
The Beyond Robotix Air Data Module is a precision airspeed sensor and barometer designed for demanding drone applications. It provides accurate airspeed and barometric altitude data, crucial for stable flight, autonomous navigation, and performance analysis for UAVs (Unmanned Aerial Vehicles).
Who is the Air Data Module For?
This module is ideal for researchers, commercial drone operators, and advanced hobbyists who require reliable and high-precision air data for their flight controller.
What are the key benefits of using the Air Data Module?
Key benefits include high-precision barometer and airspeed outputs with a minimal error band, a robust case with integrated tube locking for secure pitot connections, and dual CAN ports for simplified wiring and easy daisy-chaining within your DroneCAN network.
What makes the airspeed and altitude measurements reliable?
The Air Data Module utilizes the market-leading All Sensors AUAV series, known for providing airspeed and altitude measurements with best-in-class total error bands, ensuring trustworthy data. You can find more information about the All Sensors AUV Series here.
How does the Air Data Module integrate with my drone
The module offers flexible integration through its dual CAN ports and Pixhawk and Cube compatible JST-GH connectors, making it easy to daisy-chain with other nodes in your DroneCAN network.

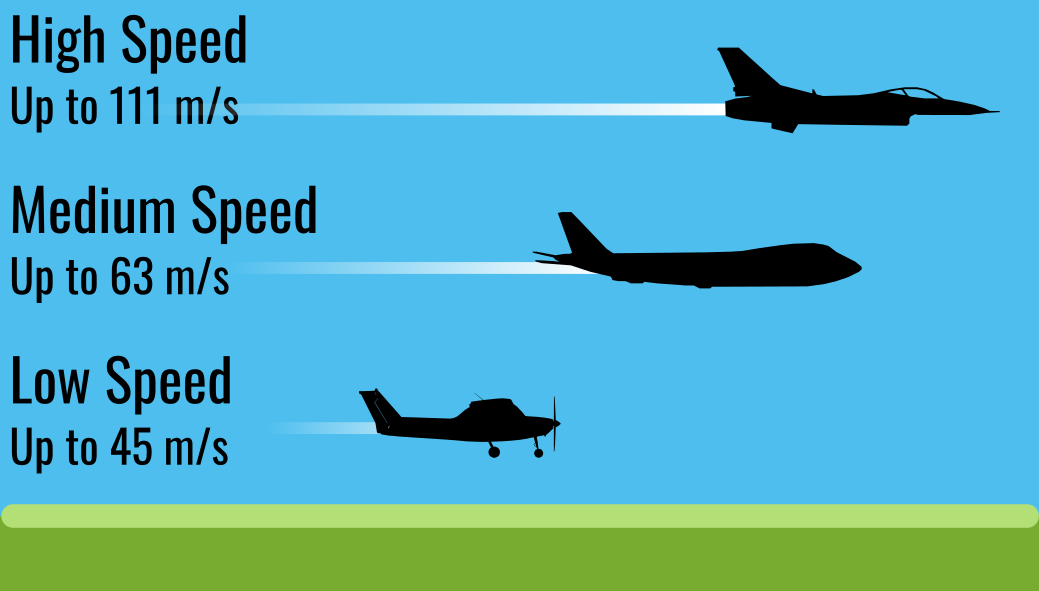

What operating speeds does the Air Data Module support?
The Beyond Robotix Air Data Module is available in three variants to cover all speeds:
- Low Speed (L05D): up to 45m/s (88 kts)
- Medium Speed (L10D): up to 63 m/s (122 kts)
- High Speed (L30D): up to 111 m/s (216 kts)
Choose the version that best suits your aircraft's operational envelope, from slow flying to high-speed UAVs.
Is the Air Data Module compatible with Pixhawk and Cube flight controllers?
Yes, the module features Pixhawk and Cube compatible JST-GH connectors, ensuring straightforward integration with popular flight controller platforms.
How do I set up the Air Data Module with Ardupilot or PX4?
A quick start guide and full information on using the Air Data Module is available in our Air Data Module Documentation.
Where can I use the Beyond Robotix Air Data Module?
It's perfect for a wide range of UAV applications, including aerial surveying, agricultural drones, delivery drones, research aircraft, and any drone requiring precise airspeed and altitude data for optimal performance and autonomous navigation.
