Micro CAN Node Development Board
Micro CAN Node Development Board
Prototype easily with the Beyond Robotix Micro CAN Node
Couldn't load pickup availability
Please note that there is a small manufacturing defect on the Development Board meaning the Micro Node cannot be secured with standoffs. This does not affect the functionality of the product.

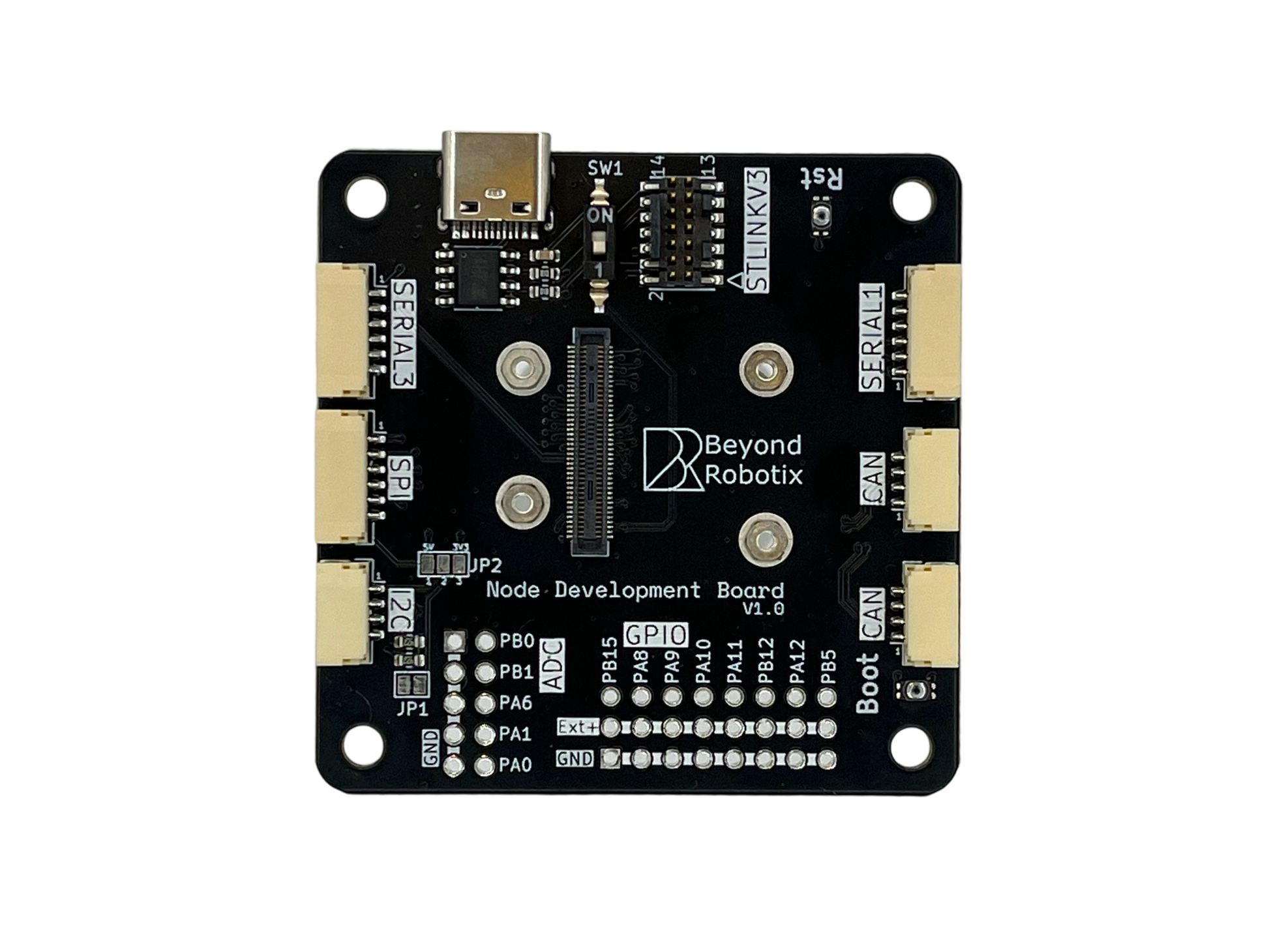

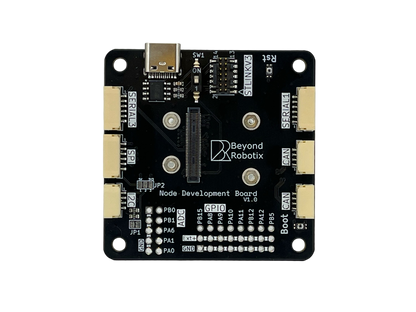

The Development Board makes it easy to prototype with the Beyond Robotix Micro CAN Node. Serial, SPI, CAN and I2C ports are pinned out with JST-GH connectors for easy connection to sensors and autopilots and the board features an STLINK-V3 header for debugging.
This is just the development board, if you don't have a Micro CAN Node yet you can purchase the development set here.
Product Details
Product Details
- Compatibility: Compatible with the Beyond Robotix Micro CAN Node
- Connectors: Pixhawk and Cube compatible JST-GH connectors
- Materials: Durable components built to withstand rigorous use
What's Included
What's Included
- Micro CAN Node Development Board
- Quick start guide
- 1 year warranty
Specifications
Specifications
- Mass: 12g
- Dimensions: 54x53mm
- Connectors: JST-GH 6 Pin Serial & SPI, JST_GH 4 Pin CAN & I2C, USB-C Port, STLINK-V3 Debug Header
- M3 mounting holes
- Upload via USB or via STLINK
- 8x GPIO/PWM compatible with 3 pin 2.54mm header
- 5x ADCs
- i2c can output either 3.3V or 5V on pin 1
- Boot and reset buttons
Resources
Resources
Share
Painless Development

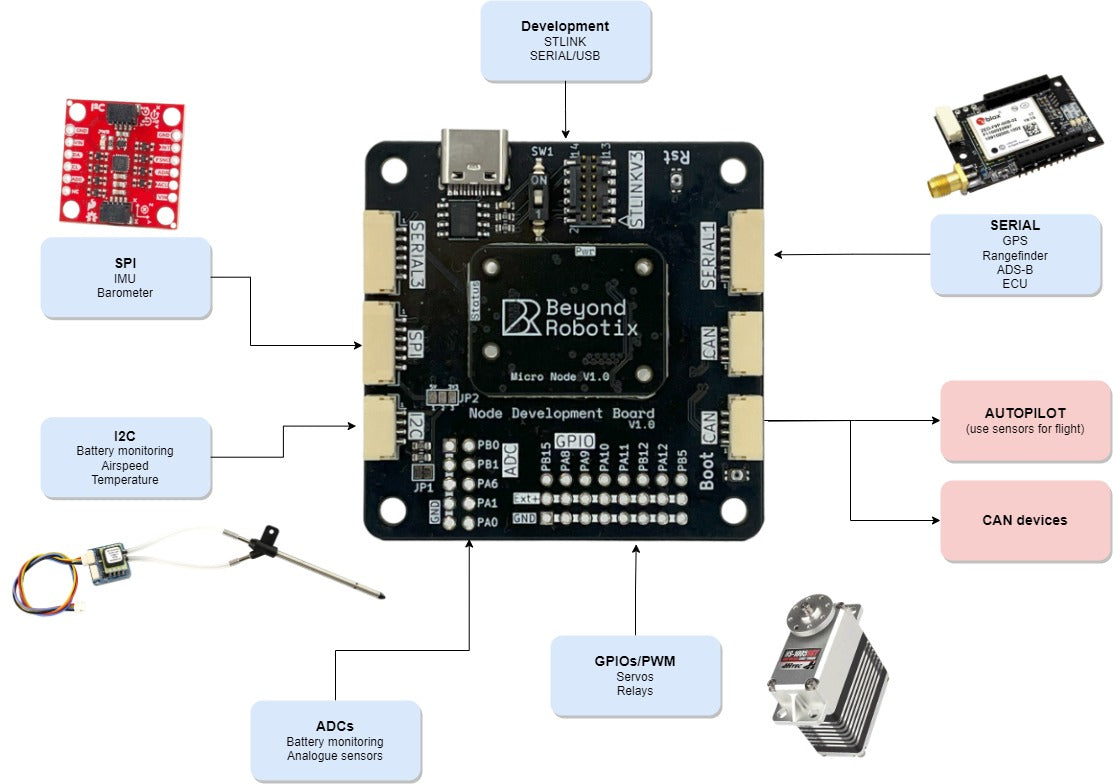

All interfaces on the Micro CAN Node are accessible through the development board with connectors or pins, including an STLINK-V3 debug header.
The STLINK header allows step by step debugging in PlatformIO, making software much easier to develop.
Easily Convert Existing Peripherals to DroneCAN
JST-GH connectors on the development board let you plug the Micro CAN Node straight into a Pixhawk or Cube flight controller and connect existing Pixhawk peripherals.
